BXZ-2L vertical backpack core drilling rig

BXZ-2L vertical backpack core drilling rig

没有此类产品
Product description

1.Brief introduction of BXZ-2L vertical backpack core drilling rig

BXZ-2L vertical backpack core drilling rig is a removable core sample drilling rig. The rig is mainly used in mineral exploration, geochemical exploration, shallow sampling, geoscience research, geotechnical engineering, engineering investigation, oil field exploration, water conservancy engineering survey, highway engineering survey and so on.

The main features of BXZ-2L vertical backpack core drilling rig are compact structure, detachable, small volume, light weight, easy to carry; imported kohler brand gasoline engine with large horsepower and guaranteed drilling depth with drilling frame. Field operation is more convenient and safe.

2.Specifications of BXZ-2L vertical backpack core drilling rig

BXZ-2L vertical backpack core drilling rig

Engine brand

Kohler

House power

7.75 HP

Fuel tank capacity

1400 ML

Transmission mode

gear-driven

Starting mode

recoil pull starter

Clutch mode

automatic clutch

Coring mode

rotary

Rate of penetration

540r /min

Gear ratio

7:1

Transmission mode

CVT (continuously variable transmission)

Drill pipe diameter

32mm

Drill pipe total length

30m

Drill hole diameter

32-120mm

Net weight

52 kg

Size

550*450*420mm

Packing measurement

1050*600*550m

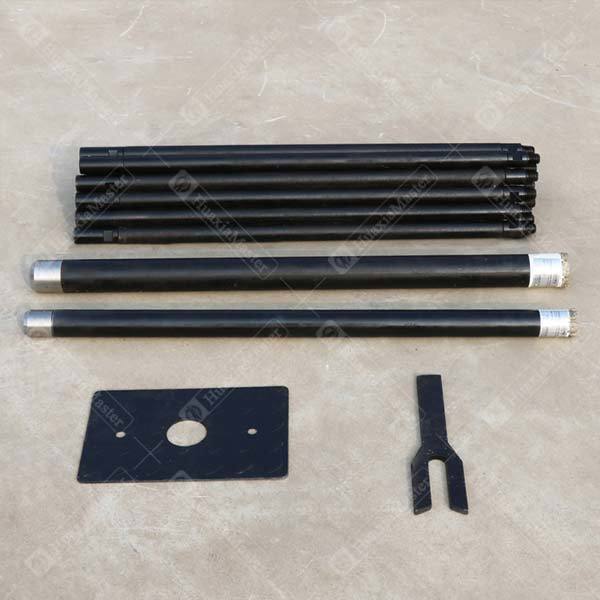

3.Configuration list of BXZ-2L vertical backpack core drilling rig

Item

Parameter

Unit

Number

Vertical backpack core drilling rig

BXZ-2L

set

1

Drilling pipe including joint(mm)

32 *800

pc

38

Reducing nipple(mm)

46

pc

1

Coring barrel(mm)

46 *700

pc

1

Alloy bit(mm)

46

pc

1

Diamond bit(mm)

46

pc

1

Reducing nipple(mm)

60

pc

1

Coring barrel(mm)

60*700

pc

1

Alloy bit(mm)

60

pc

1

Diamond bit(mm)

60

pc

1

Mud pump (gasoline engine)



set

1

Inlet hose pipe(mm)

20*1000

pc

1

Inflow water filter



pc

1

Outlet hose pipe(mm)

13*1000

pc

1

Water supply pipe(mm)

13*4500

pc

1

Safety clamp



grasp

1

Pipe wrench



grasp

2

Safety plate



pc

1

Spark plug



pc

1

Ring gasket



set

1

Water seal



set

1



Corresponding parameter set not found, please add it in property template of background
