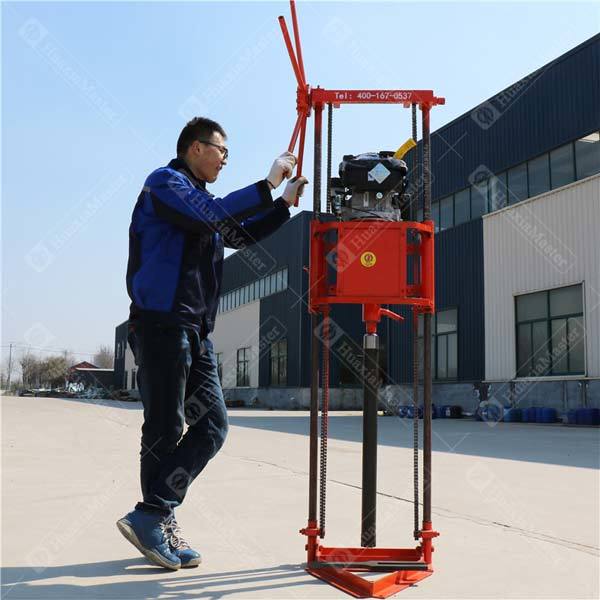

QZ-2B gasoline engine sampling drilling rig

QZ-2B gasoline engine sampling drilling rig

没有此类产品
Product description

1.Brief introduction of QZ-2B gasoline engine sampling drilling rig
QZ-2B gasoline engine sampling drilling rig is produced by Shandong Master Machinery Group. It is suitable for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole and small household wells check out.
QZ-2B gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

2.Technical parameters of QZ-2B gasoline engine sampling drilling rig

QZ-2B gasoline engine sampling drilling rig

Bottom hole diameter (mm)

32-91



Drilling depth(m)





soil φ91:10-15m
rock φ91:5-10m
rock φ75:10-15m
rock φ60:15-20m
rock φ46:20-25m

Drilling pipe (mm)

28

Rotating speed(r/min)

200-570

Torque(n.m)

110

Gasoline engine

house power(hp)

5 (3.5kw)

displacement(cc)

196

Dimension(l*w*h)

600*450*1900

Weight(kg)

90

3.Configuration list of QZ-2B gasoline engine sampling drilling rig

Item

Parameter

Unit

Quantity

Gasoline engine sampling drilling rig

QZ-2B

set

1

Drilling pipe

28*1500

pc

6

Drilling pipe

28*800

pc

8

Pipe joint

35

pc

14

Reducing nipple

45/35

pc

1

Core barrel

45*800

pc

1

Alloy bit

46

pc

1

Reducing nipple

58/35

pc

1

Core barrel

58*800

pc

1

Alloy bit

60

pc

1

Three-wing bit

60

pc

1

Safety clamp



hold

1

Water seal

30*50*10

pc

4

Oil seal

30*50*10





Oil seal

17*50*10





Control wheel



pc

1

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product
