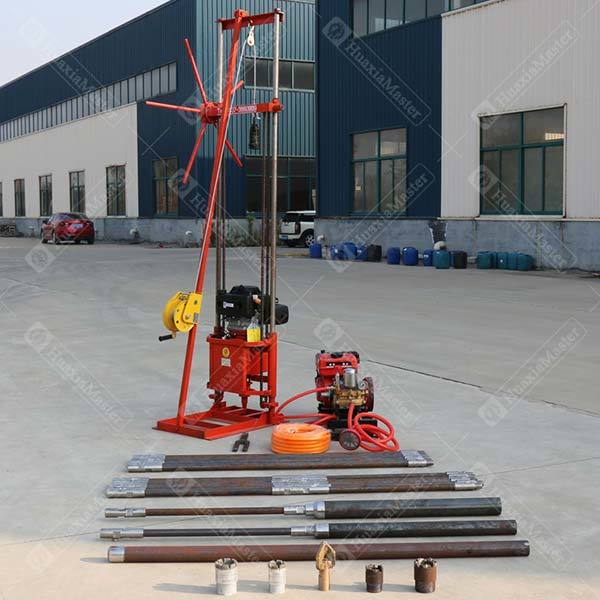

    • Commodity name: QZ-2CS gasoline engine sampling drilling rig

    1.Brief introductions of QZ-2CS gasoline engine sampling drilling rig

    QZ-2CS gasoline engine sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.
    QZ-2CS gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

    2.Specifications of QZ-2CS gasoline engine sampling drilling rig

     QZ-2CS gasoline engine sampling drilling rig

     End hole diameter (mm)

    32-91

    Drilling depth(m)

    soil φ91:10-15m
    rock φ91:5-10m
    rock φ75:10-15m
    rock φ60:15-20m
    rock φ46:20-30m

    Drilling pipe diameter(mm)

    30

    Gasoline engine

    horse power(hp)

    6(4.5kw)

    displacement(cc)

    224

    Dimension(l*w*h)

    600*450*1900

    Weight(kg)

    95

    3.Configuration list of QZ-2CS gasoline engine sampling drilling rig

    Item Parameter Unit Quantity

    Gasoline engine sampling drilling rig

    QZ-2CS

    set

    1

    Drilling pipe

    30*1500

    pc

    6

    Drilling pipe

    30*800

    pc

    14

    Pipe joint

    38

    pc

    20

    Reducing nipple

    58/38

    pc

    2

    Core barrel

    58*800

    pc

    1

    Core barrel

    58*1500

    pc

    1

    Alloy bit

    60

    pc

    1

    Diamond bit

    60

    pc

    1

    Reducing nipple

    73/38

    pc

    2

    Core barrel

    73*800

    pc

    1

    Alloy bit

    75

    pc

    1

    Diamond bit

    75

    pc

    1

    Three-wing bit

    75

    pc

    1

    Safety clamp



    pc

    1

    Water seal

    Y 30*50*10

    pc

    4

    Oil seal

    30*50*10

    pc

    1

    Pipe wrench

    18

    pc

    2

    Monkey wrench



    pc

    1

    Shaft snap ring clamp



    pc

    1

    Hole snap ring clamp



    pc

    1

    Clamp



    pc

    1

    Cross screwdriver



    pc

    1

    Hex wrench



    pc

    1

    Control wheel



    pc

    1

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
