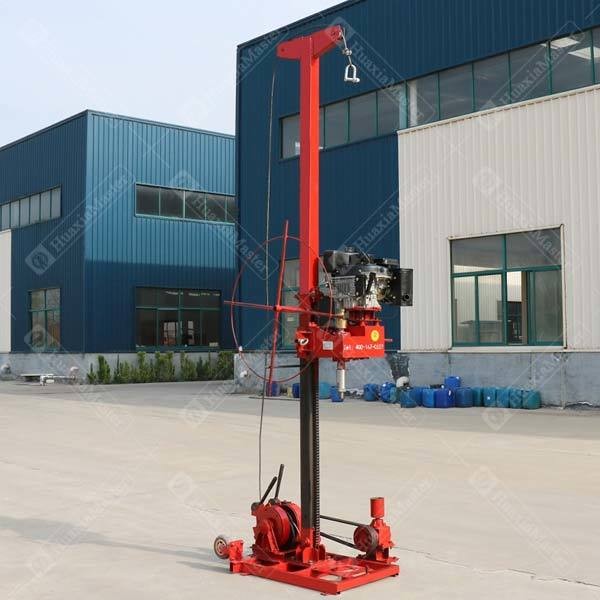

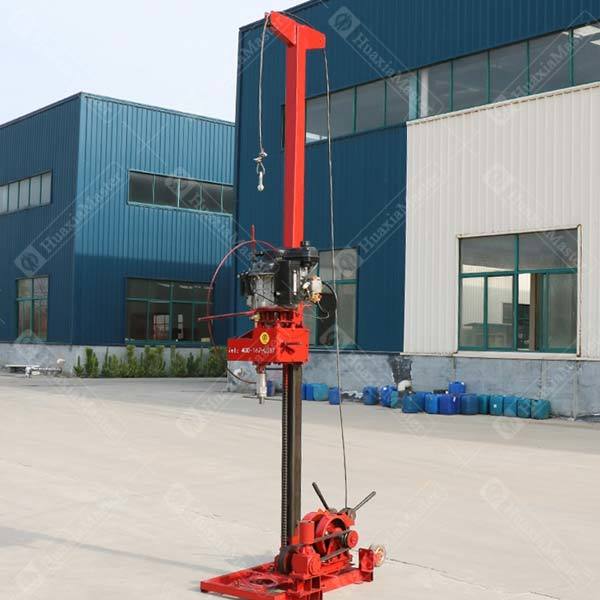

1.Brief introductions of QZ-3 diesel engine sampling drilling rig

The QZ-3 diesel engine sampling drilling rig is independently developed by Shandong Master Machinery Group, which is a portable multi-purpose drilling rig. The QZ-3 diesel engine sampling drilling rig is equipped with a hoist, which is more convenient for geological drilling and lifting. It can do standard drilling hole, earth sampling and cone penetration with the heavy hammer.

The QZ-3 diesel engine sampling drilling rig uses diesel power, and it is more convenient to purchase oil. The rig is reasonable in design, advanced in structure, easy to assemble and disassemble, small in size, light in weight and easy to transport, which brings great convenience for field investigation and construction.

2. Technical parameters of QZ-3 diesel engine sampling drilling rig

QZ-3 diesel engine sampling drilling rig
Borehole diameter (mm)

46-110

Drilling depth(m)

soil φ110:15-20m

rock φ91:20-25m

rock φ75:25-30m

rock φ60:30-40m

rock φ46:40-50m

Drilling pipe diameter (mm)

30

Torque(n.m)

180

Dimension(l*w*h)

680*1200*3800(highly customizable)

Weight(kg)

165

3.Configuration List of QZ-3 diesel engine sampling drilling rig

Item Specifications Unit Quantity Remarks

Base









QZ-3

pc

1



Geological engineering drilling rig

Winding engine

pc

1

Drilling tower

pc

2

Manual windlass

pc

1

Diesel engine

pc

1

Gear box

pc

1

Drilling pipe including joint

30*1000

pc

15

Drill pipe

Drilling pipe including joint

30*2000

pc

5

Reducing nipple

58/38

pc

1

60mm core drill tool

Core barrel

58*800

pc

1

Core barrel

58*1500

pc

1

Diamond bit

60

pc

1

Reducing nipple

73/38

pc

1

75mm core drill tool

Core barrel

73*800

pc

1

Diamond bit

75

pc

1

Safety clamp









Tool

Pipe wrench







Drill rod tong







Oil seal



pc

2

Vulnerable parts

Safety plate



pc

1

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
