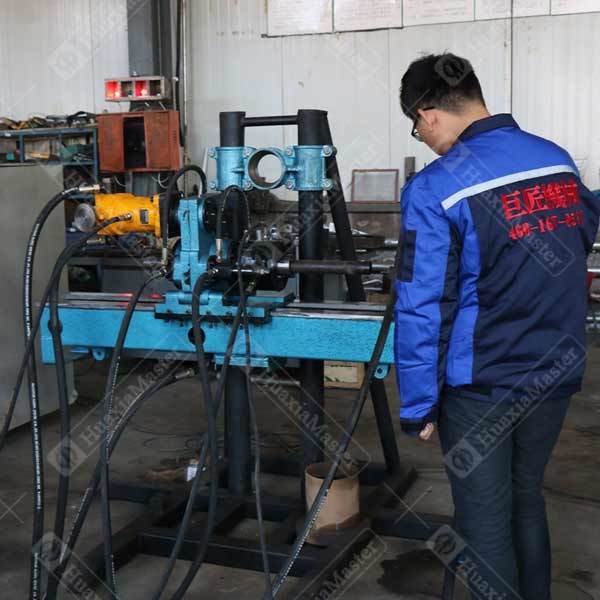

KY-200 hydraulic exploration drilling rig for metal mine

KY-200 hydraulic exploration drilling rig for metal mine

没有此类产品
Product description

1.Brief introductions of KY-200 hydraulic exploration drilling rig for metal mine

KY-200 hydraulic exploration drilling rig for metal mine is widely used for tunnel and surface geological exploration and can drill the hole from any angle. The KY-200 hydraulic exploration drilling rig for metal mine adopts the structure of all hydraulic power head and consists of three parts: main engine, pump station and operation flatform. The hydraulicexploration drilling rig for metal mine is easy to disassemble and is convenient to transport. The drilling rig arrangement is flexible. Drilling pipe screwing and unscrewing is mechanized. It can save labour cost and improve work efficiency. And it has infinitely variable speeds.

KY-200 hydraulic exploration drilling rig for metal mine has the function of linkage. It is simple and safe through controlling the operation floor. The spindle of the gyration adopts the through hole structure. The length of the drill rod is not restricted by the drilling machine, and it can also be applied to the diamond wire-line coring drilling.

2. Specifications of KY-200 hydraulic exploration drilling rig for metal mine

Drilling pipe diameter (mm)

33

43

Output torque (n.m)

81-295

Borehole depth (m)

200

160

Feed capability(kn)

27

Feeding stroke (mm)

850

Pullout capability (kn)

20

Spindle speed (r/min)

600-2000

Motor power (kw)

22
