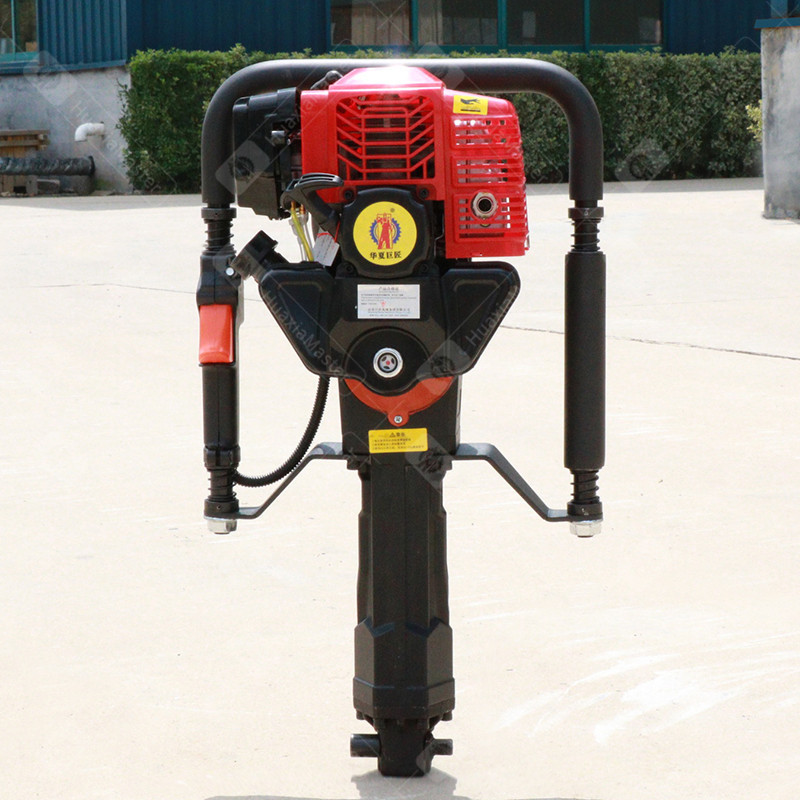

QTZ-2 gasoline engine portable soil sampling drilling rig
QTZ-2 gasoline engine portable soil sampling drilling rig
1. Brief introduction of gasoline engine portable soil sampling drilling rig
QTZ-2 gasoline engine portable soil sampling drilling rig adopts the more power, and the impact force is stronger and the drilling depth is deeper, which can drill up to 10-15 meters.
2. Applications of QTZ-2 gasoline engine portable soil sampling drilling rig
（1）Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
（2）Groundwater survey; coastal geological survey; wetland environment investigation.
（3）Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Technical parameters of QTZ-2 gasoline engine portable soil sampling drilling rig
|
QTZ-2 gasoline engine portable soil sampling drilling rig |
||
|
Power |
power |
3.3HP |
|
|
lighter way |
backflush pull rope |
|
|
oil consumption |
0.55 l/h |
|
Impact times |
1650r/min |
|
|
Impact energy |
35J-65J |
|
|
Core depth |
10m-15m |
|
|
Host weight |
25kg |
|

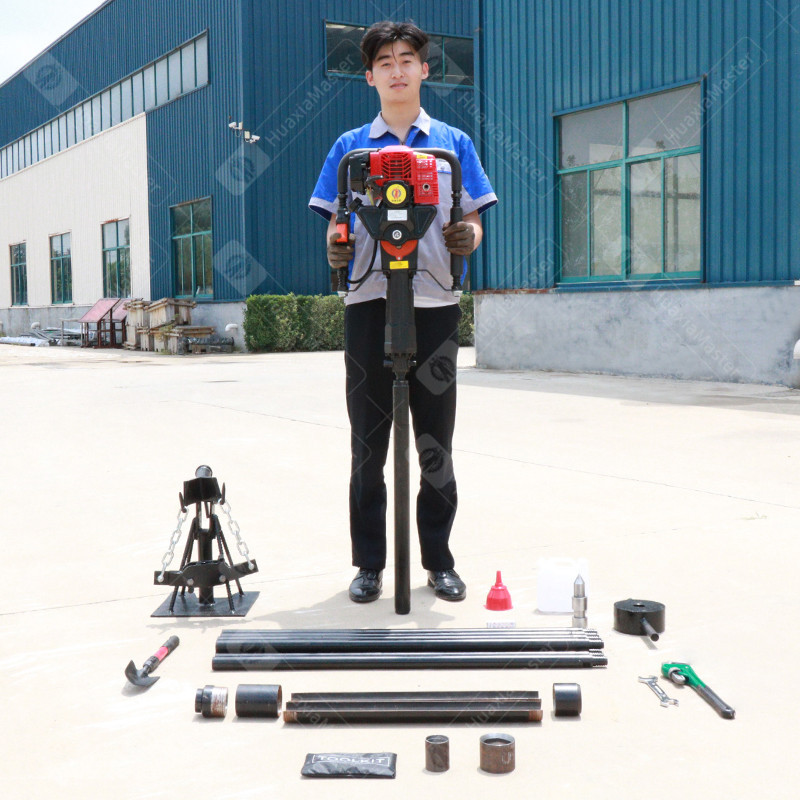

4.Configurations list of QTZ-2 gasoline engine portable soil sampling drilling rig
|
Name |
Model |
Company |
Number |
|---|---|---|---|
|
Main engine of soil drilling rig |
QTZ-2 |
set |
1 |
|
Square buckle impact handle |
Φ34 |
pc |
1 |
|
drill pipe |
Φ34*1000mm |
pc |
10 |
|
head |
Φ50/34 |
pc |
1 |
|
Coupling |
Φ50 |
pc |
1 |
|
Split pipe |
Φ50 |
pc |
1 |
|
Inner edge pipe shoe |
Φ50 |
pc |
1 |
|
Outer edge pipe shoe |
Φ50 |
pc |
1 |
|
head |
Φ73/34 |
pc |
1 |
|
Coupling |
Φ73 |
pc |
1 |
|
Split pipe |
Φ73 |
pc |
1 |
|
Inner edge pipe shoe |
Φ73 |
pc |
1 |
|
Outer edge pipe shoe |
Φ73 |
pc |
1 |
|
Portable penetration hammer |
10KG |
pc |
1 |
|
Hit the head |
Φ34 |
pc |
1 |
|
Take over on both sides |
Φ34 |
pc |
1 |
|
Touch probe |
Φ34 |
pc |
1 |
|
Extractor |
Three position arm |
pc |
1 |
|
Matching oil pot |
25:1 |
pc |
1 |
|
Oil funnel |
|
pc |
1 |
|
spark plug |
|
pc |
1 |
|
tool kit |
|
pc |
1 |
|
Pipe tongs |
|
pc |
2 |
|
Wrench |
|
pc |
1 |
|
Soil shovel |
|
pc |
1 |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
