QTZ-3 gasoline engine portable soil sampling drilling rig
QTZ-3 gasoline engine portable soil sampling drilling rig
1. Brief introduction of QTZ-3 gasoline engine portable soil sampling drilling rig
QTZ-3 gasoline engine portable soil sampling drilling rig is more humanized and more suitable for researchers in scientific research institutions or universities. The power is further strengthened, which can meet the requirement of soil sampling for 15-20 meters depth.
2. Applications of QTZ-3 gasoline engine portable soil sampling drilling rig
（1）Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
（2）Ground water survey; coastal geological survey; wetland environment investigation.
（3）Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Technical parameters of QTZ-3 gasoline engine portable soil sampling drilling rig
| QTZ-3 gasoline engine engine portable soil sampling drilling rig | ||
|
Power |
power |
3.8hp |
|
lighter way |
back flush pull rope |
|
|
oil consumption |
0.6 l/h |
|
|
Impact times |
2460 r/min |
|
|
Impact energy |
35j-70j |
|
|
Core depth |
15m-20m |
|
|
Host weight |
26kg |
|

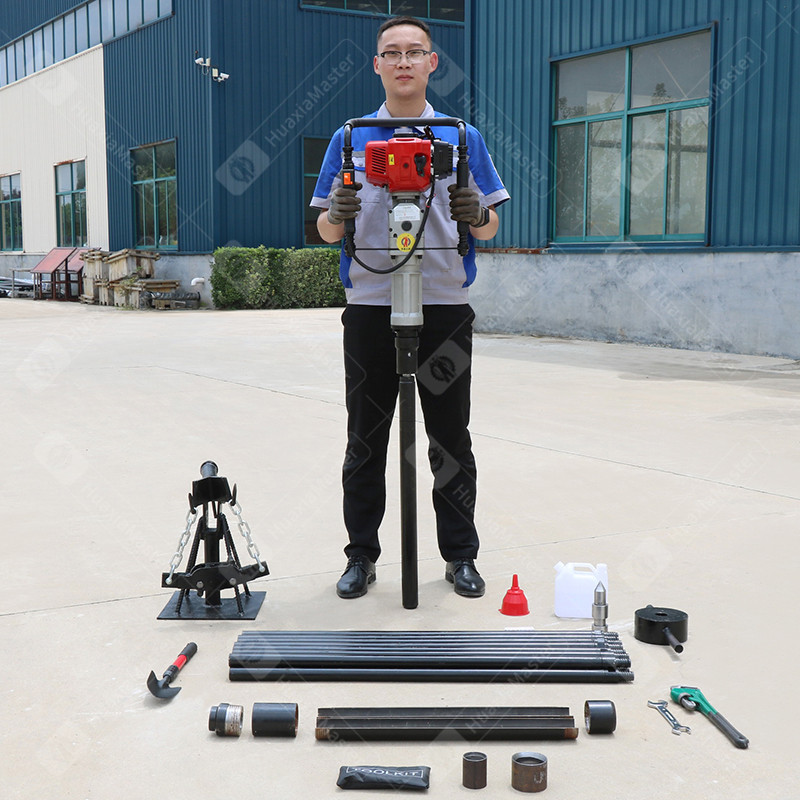

4. Configuration list of QTZ-3 gasoline engine portable soil sampling drilling rig
| Name | Model | Company | Number |
|
Main engine of soil drilling rig |
QTZ-3 |
set |
1 |
|
Cylinder impact handle |
Φ34 |
pc |
1 |
|
drill pipe |
Φ34*1000mm |
pc |
15 |
|
head |
Φ50/34 |
pc |
1 |
|
Coupling |
Φ50 |
pc |
1 |
|
Split pipe |
Φ50 |
pc |
1 |
|
Inner edge pipe shoe |
Φ50 |
pc |
1 |
|
Outer edge pipe shoe |
Φ50 |
pc |
1 |
|
head |
Φ73/34 |
pc |
1 |
|
Coupling |
Φ73 |
pc |
1 |
|
Split pipe |
Φ73 |
pc |
1 |
|
Inner edge pipe shoe |
Φ73 |
pc |
1 |
|
Outer edge pipe shoe |
Φ73 |
pc |
1 |
|
Portable penetration hammer |
10KG |
pc |
1 |
|
Hit the head |
Φ34 |
pc |
1 |
|
Take over on both sides |
Φ34 |
pc |
1 |
|
Touch probe |
Φ34 |
pc |
1 |
|
Extractor |
Three position arm |
pc |
1 |
|
Matching oil pot |
25:1 |
pc |
1 |
|
Oil funnel |
|
pc |
1 |
|
spark plug |
|
pc |
1 |
|
tool kit |
|
pc |
1 |
|
Pipe tongs |
|
pc |
2 |
|
Wrench |
|
pc |
1 |
|
Soil shovel |
|
pc |
1 |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
