QTZ-3D electric portable soil sampling drilling rig

Keywords:

soil sampling drilling rig/machine soil core sampler drilling machine for soil investigation drilling soil drills

产品描述

  • 产品描述
    • Commodity name: QTZ-3D electric portable soil sampling drilling rig

    1. Brief introductions of QTZ-3D electric portable soil sampling drilling rig

    QTZ-3D electric portable soil sampling drilling rig is an electric version of the QTZ-3 soil drilling rig (gasoline engine).

    The improvement of QTZ-3D electric portable soil sampling drilling rig is mainly engine system. While QTZ-3 soil sampling drilling rig is equipped with gasoline engine, QTZ-3D is powered by electric. The QTZ-3D electric portable soil sampling drilling rig selects pure copper winding two phase electric motor as a power source. The advantage of using the electric engine as the power source is its stability, and it can continuously improve the working efficiency with a certain kind of power operation equipment. It greatly improves the feed speed. In addition, QTZ-3D electric portable soil sampling drilling rig is easy to operate, safe and stable, and can greatly reduce the labor force during the drilling operations.

    2. Applications of QTZ-3D electric portable soil sampling drilling rig

    (1)geotechnical investigation

    (2)environmental soil survey

    (3)gricultural soil survey

    (4)groundwater survey

    (5)coastal geological survey

    (6)wetland environmental investigation

    (7)tailing pond investigation

    (8)archaeological investigation

    (9)physical chemistry exploration secondary halo sampling

    (10)the description of soil structure

    3. Technical parameter s of QTZ-3D electric portable soil sampling drilling rig

    QTZ-3D electric portable soil sampling drilling rig

    Voltage

    220v

    Power

    3.6kw

    Lighter way

    switch mode

    Energy dissipation

    low power consumption

    Impact times

    2600min/m

    Impact energy

    60j-79j

    Core depth

    15m-20m

    Host weight

    22kg

    4.Configuration list of QTZ-3D electric portable soil sampling drilling rig

    Name

    Model

    Company

    Number

    Main engine of soil drilling rig

    QTZ-3D

    set

    1

    Square buckle impact handle

    Φ34

    pc

    1

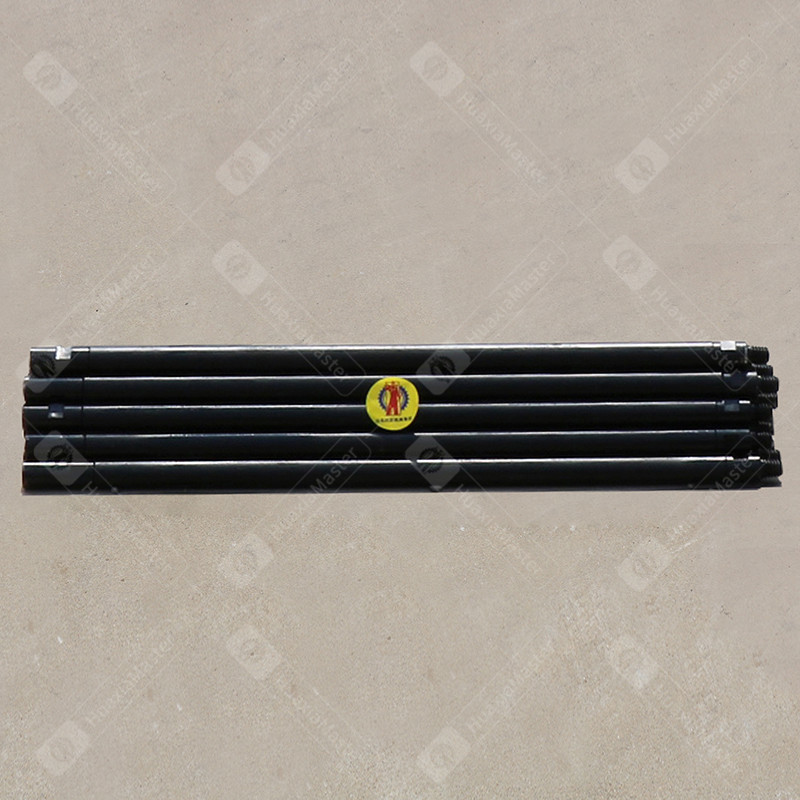

    drill pipe

    Φ34*1000mm

    pc

    15

    head

    Φ50/34

    pc

    1

    Coupling

    Φ50

    pc

    1

    Split pipe

    Φ50

    pc

    1

    Inner edge pipe shoe

    Φ50

    pc

    1

    Outer edge pipe shoe

    Φ50

    pc

    1

    head

    Φ73/34

    pc

    1

    Coupling

    Φ73

    pc

    1

    Split pipe

    Φ73

    pc

    1

    Inner edge pipe shoe

    Φ73

    pc

    1

    Outer edge pipe shoe

    Φ73

    pc

    1

    Portable penetration hammer

    10KG

    pc

    1

    Hit the head

    Φ34

    pc

    1

    Take over on both sides

    Φ34

    pc

    1

    Touch probe

    Φ34

    pc

    1

    Extractor

    Three position arm

    pc

    1

    tool kit



    pc

    1

    Pipe tongs



    pc

    2

    Wrench



    pc

    1

    Soil shovel



    pc

    1

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product
