YQZ-30 hydraulic mountain geophysical drilling rig

Keywords:

hydraulic drilling machine hydraulic motor for rock drills hydraulic china made drill rig diesel engine drill rig

产品描述

  • 产品描述
    • Commodity name: YQZ-30 hydraulic mountain geophysical drilling rig

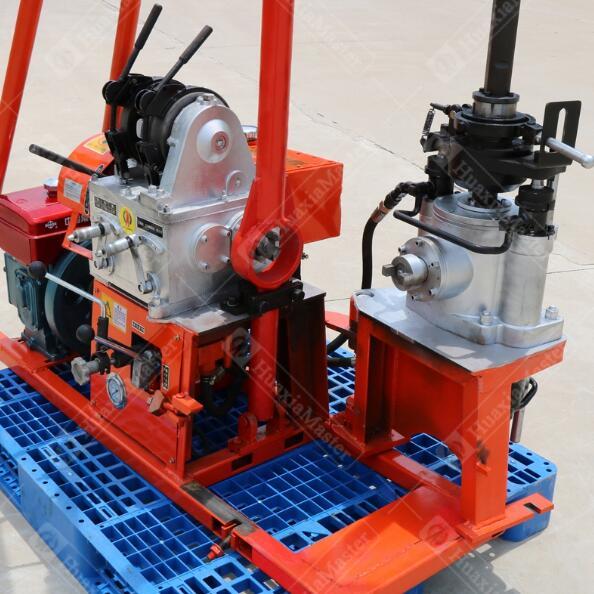

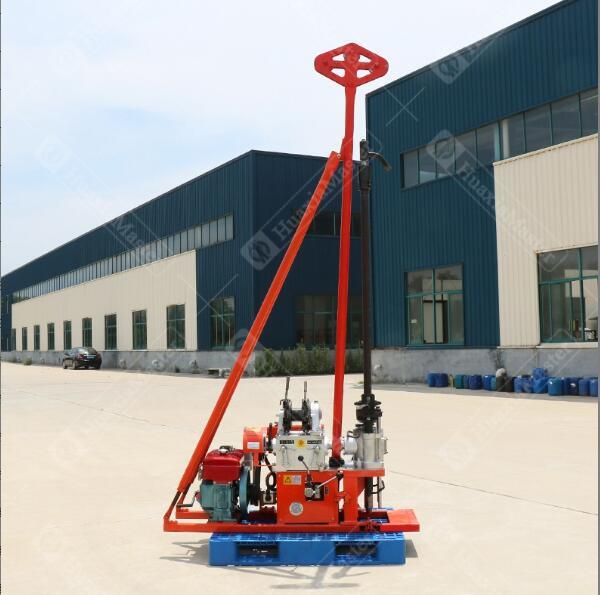

    1.Brief introductions of YQZ-30 hydraulic mountain geophysical drilling rig

    YQZ-30 hydraulic mountain geophysical drilling rig is a small portable diesel oil drilling machine. It is mainly used for prospecting and exploration, geophysical exploration,drilling engineering such as road construction and blasting hole, shallow oil, natural gas and groundwater drilling. It also can be used for engineering drilling of dam grouting and tunnel ventilation and drainage. The drilling depth of YQZ-30 hydraulic mountain geophysical drilling rig is 30 meters. The open hole diameter is 89mm, and the final hole diameter is 75mm.

    2.Features of YQZ-30 hydraulic mountain geophysical drilling rig

    (1)Oil pressure automatic feeding mechanism, high drilling efficiency.

    (2)Using the upper ball clamp mechanism, non-stop re-chuck

    (3)Handles are centralized, easy to operate, safe and reliable.

    (4)Compact structure, small floor space.

    (5)The shell of drill rig and gearbox are made of aluminum. The shell reduce the weight of the fuselage.

     (6)Easy to decomposition and move, suitable for working in hilly terrain, mountainous areas and other complex terrain.

    3.Technical parameters of YQZ-30 hydraulic mountain geophysical drilling rig

    Main engine

    Drilling depth

    30m

    Drill pipe diameter

    42mm

    Open hole diameter

    91-110mm

    End hole diameter

    75 mm

    Drilling rig weight

    198kg(No power)

    Drilling rig dimension

    1400*600*1055mm

    Windlass

    Maximum hoist capacity

    4kn

    Coiling block diameter

    90mm

    Wire rope diameter

    8mm

    Maximum length

    18m

    The band type brake diameter

    200mm

    The band type brake width

    35mm

    Spindle

    Rotating speed

    136/338/578r/min

    Stroke

    400mm

    Maximum pressure

    8kn

    Lifting power

    10kn

    Oil pump

    Model

    YBC20/125

    Rated pressure

    12.5Mpa

    Rate of flow

    20ml/r

    Rated rotate speed

    1500r/min

    Power

    Diesel engine

    R180

    Cooling type

    water-cooling

    Rated power

    5.67KW

    Rated rotate speed

    2600r/min

    4.Configuration list of YQZ-30 hydraulic mountain geophysical drilling rig

    Item Specification Unit Quantity

    Hydraulic mountain water drill

    YQZ-30

    Platform

    1

    Drill pipe including joint

    42

    m

    30

    Reducing nipple joint

    57/57

    pc

    2

    Reducing nipple

    89*57

    pc

    1

    Opening pipe

    89

    pc

    1

    Alloy bit

    91

    pc

    1

    Reducing nipple

    73

    pc

    1

    Core barrel

    73

    pc

    1

    Diamond bit

    75

    pc

    1

    Water pump

    diesel engine power

    set

    1

    Drill tower

    3m

    set

    1

    Wire rope

    10mm

    m

    20

    Rope cappel



    pc

    4

    U shape ring



    pc

    1

    Flat square main rod

    2m/pc

    pc

    1

    Reducing nipple for main rod



    pc

    1

    Water faucet



    pc

    1

    Lifter



    pc

    1

    U-fork

    57

    pc

    1

    Safety clamp

    57

    pc

    1

    Pliers

    24

    pc

    1

    L-wrench

    73/89

    pc

    2

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
