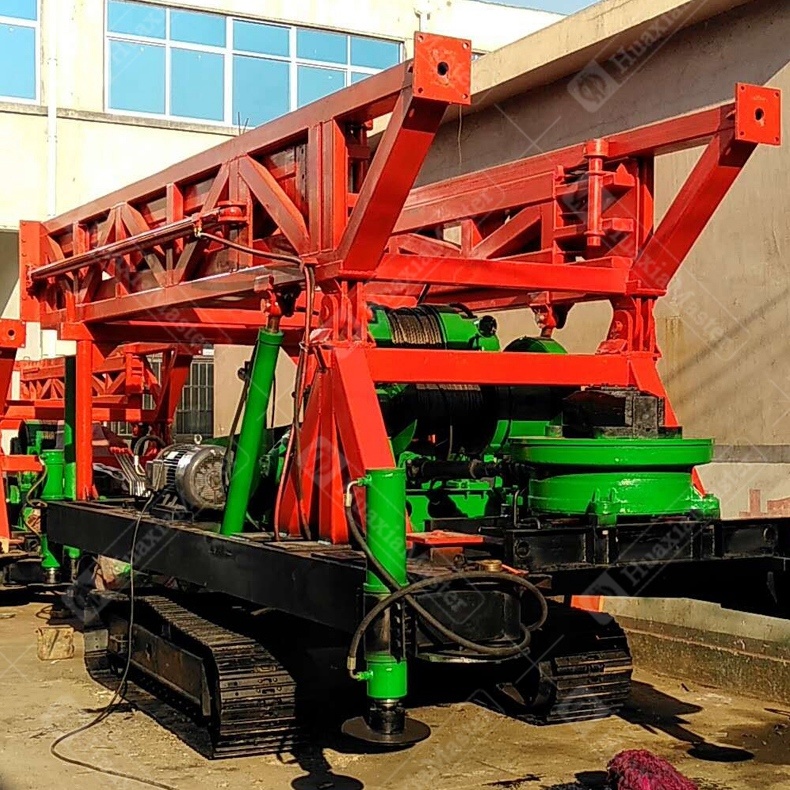

SPJ-600 turntable water well drilling rig

SPJ-600 turntable water well drilling rig

没有此类产品
Product description

1.The features of SPJ-600 water well drilling rig

SPJ-600 water well drilling rig is mainly used for drilling and exploration of hydrology and water wells within 600 meters, which is suitable for soil, rock and gravel layers.

The SPJ-600 water well drilling rigadopts mechanical transmission and rotary table driving drilling tool to achieve footage. It has the characteristics of large output torque, strong lifting ability and wide speed range. The rig has windlass, derrick with truss type "A" type tower or four corner towers. The drilling rig is a bulk structure, with strong decomposition ability and easy transportation. It can also be processed into trailer or vehicle mounted.

2.The specifications of SPJ-600 water well drilling rig

Drilling depth

600m

Borehole diameter

500mm-2500mm

Rotary table latus rectum

605mm

Active drillingpipe

108*108*12mm

Drilling pipe

89mm

Rotary speed

42/75/134kn.m



Main windlass

single rope lifting power

35kn

hook rated load

210kn

hook lifting speed

0.15-0.47m/s

pulley block model

3*3

wire-rope diameter

20-21.5mm

Assistant windlass

single rope rated lifting power

15kn

maximum lifting power of a single rope

20kn

single rope rated lifting speed

0.58m/s

wire-rope diameter

9.8mm

Windlass power

37kw

Gross weight (excluding drillingpipe)

11t



Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
