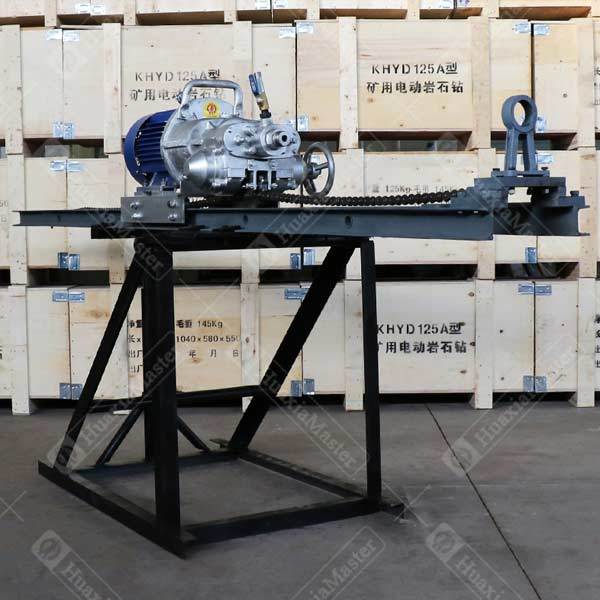

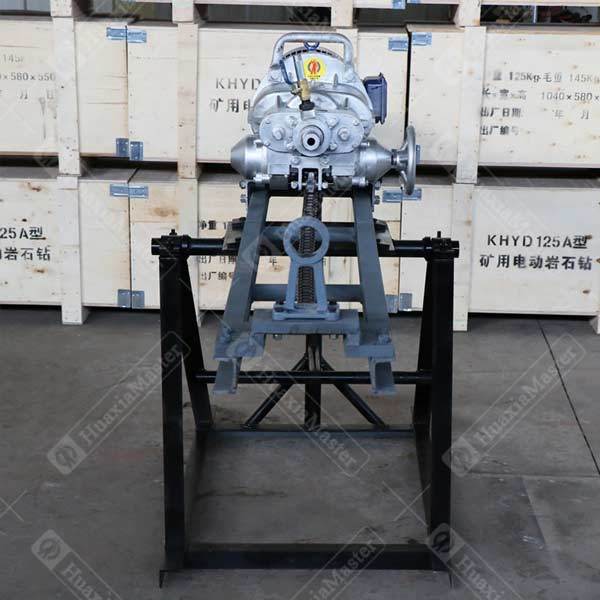

KHYD125 electric rock drilling rig

1. Briefintroductionsof KHYD125 electric rock drilling rigElectric rock drilling rigcanbefittedwithdrillingrigs,andcanbedrilledhorizontallyorinclinedupwardorupward.Inordertoprolongtheservicelifeofthedrillbitandimprovetheworkingconditionsoftheoperator,wetdrilledwatercanbeusedtodischargethepowderandscrewbladedrillscanalsobeusedfordrydraining.Indrillingoperations,weonlyneedtooperatethehandwheel,andwecanadvanceandreturnquickly.2. SpecificationsofKHYD125 electric rock drilling rigModelUnitKHYD125Ratedoutputpowerofelectricmotorkw7.5Ratedvoltageofelectricmotorv380/660Ratedfrequencyofelectricmotorhz50Ratedcurrentofelectricmotora15.4Motorrotatingspeedr/min1440Motorphasenumber threephasecommunicationRatedworkingmode continuityDrillingspeedmm/min280Speedofreturnm/min Boreholediametermm42-80(rockstratum)Harnessrangeprotodikonov`sscaleofhardnessf<10Maximumdrillingdepthm25(rockstratum)Weightofdrillingrig(excludingrunways,drillpipes,drills)kg125Dimension(length*width*height)mm950*460*430

Keywords:

产品描述

  • 产品描述
    • Commodity name: KHYD125 electric rock drilling rig

    1.Brief introductions of KHYD125 electric rock drilling rig

    (1)electric rock drilling rig can be fitted with drilling rigs, and can be drilled horizontally or inclined upward or upward.

    (2)In order to prolong the service life of the drill bit and improve the working conditions of the operator, wet drilled water can be used to discharge the powder and screw blade drills can also be used for dry draining.

    (3)In drilling operations, we only need to operate the hand wheel, and we can advance and return quickly.

    2.Specifications of KHYD125 electric rock drilling rig

    Model

    Unit

    KHYD125

    Rated output power of electric motor

    kw

    7.5

    Rated voltage of electric motor

    v

    380/660

    Rated frequency of electric motor

    hz

    50

    Rated current of electric motor

    a

    15.4

    Motor rotating speed

    r/min

    1440

    Motor phase number



    three phase communication

    Rated working mode



    continuity

    Drilling speed

    mm/min

    280

    Speed of return

    m/min



    Borehole diameter

    mm

    42-80(rock stratum)

    Harness range

    protodikonov`s scale of hardness

    f<10

    Maximum drilling depth

    m

    25(rock stratum)

    Weight of drilling rig (excluding runways, drill pipes, drills)

    kg

    125

    Dimension(length *width *height)

    mm

    950*460*430

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
