    • Commodity name: ZDY-1600S full hydraulic tunnel drilling rig

    1.Brief introductions of ZDY-1600S full hydraulic tunnel drilling rig

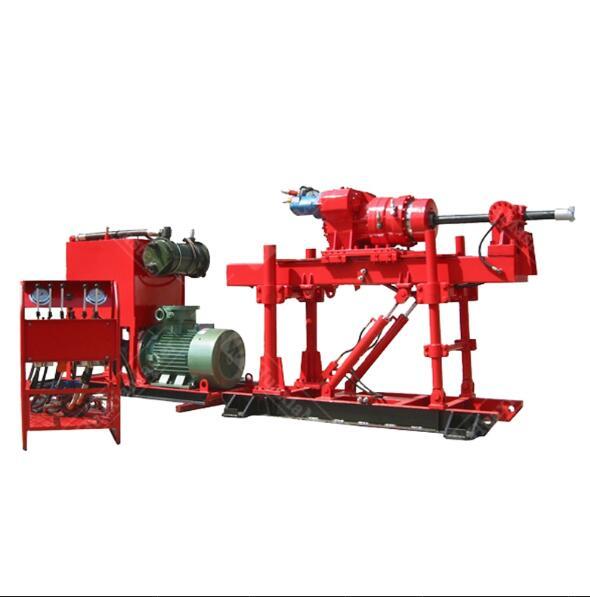

    ZDY1600S full hydraulic tunnel drilling rig is a full hydraulic power head mechanism, which is divided into three main parts, main engine, pump station and control table. It is easy to disassemble and convenient to transport. The drilling rig structure is arranged with great flexibility. Also, we provide mechanical unload drilling tools, chuck, clamp and oil cylinder. Revolving device and gripper can operate in linkage, Therefore, the drilling rig is highly automated, made the drilling rig efficient and easy to operate.

    The ZDY1600S full hydraulic tunnel drilling rig adopts double pump system. The rotation parameters and the input parameters are independently mediated, which improves the adaptability of the drilling machine to various drilling technology; it is convenient to save force by adjusting the inclination angle of the fuselage with the support oil cylinder; the rotary device adopts the through hole structure. And the length of the drill pipe is not limited to the process. The worker can operate from afar, so it’s good in flexibility and safety.

    2. Specifications of ZDY-1600S full hydraulic tunnel drilling rig

    Project

    Unit

    Parameter

    Maximum drilling depth

    m

    250/80

    Open hole diameter

    mm

    Ф113/Ф128

    End hole diameter

    mm

    Ф150/Ф200

    Drilling pipe diameter

    mm

    Ф63.5/Ф73

    Drilling angle

    °

    0-±90

    Output torque

    n.m

    900-1600

    Rated advance speed

    m/s

    0-0.2

    The applicability of the strength coefficient of coal and rock



    f≦10

    Main engine dimension size

    mm

    2300*950*1500

    Total weight (excluding the drill rod)

    kg

    1900

    Main engine weight

    kg



    Motor power

    kw

    30

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
