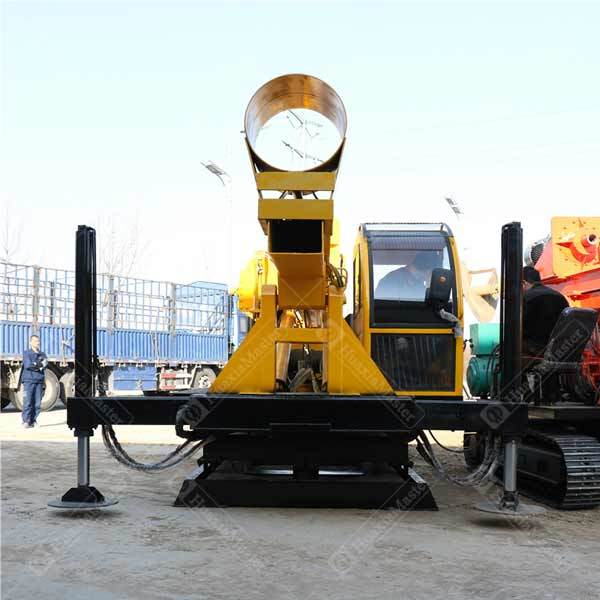

LXB type walking pile driver
LXB type walking pile driver
1.Introductions of LXB type walking pile driver
A widen and larger chassis is installed on the pile driver. Using hydraulic movement, in the fixed position of the main frame can be rotated arbitrarily, fast, good stability. Piling depth can reach 16 meters, power drill power can reach 30 kw. This car is equipped with hydraulic automatic unearthed tube do not need manual shovel. Suitable for piling high-rise buildings, highways, power facilities, solar photovoltaic power generation, this car has the characteristics of fast positioning, quick piling, high efficiency and good movement stability.
2.Parameters of LXB type walking pile driver
|
Item |
Unit |
Parameters |
|
Borehole diameter |
mm |
150-800 |
|
Drilling depth |
m |
13-15 |
|
rpm |
40 |
|
|
Power head power |
kw |
30 |
|
Climbing ability |
° |
40 |
|
Drill pipe diameter |
mm |
300-1200 |
|
Max torque |
kn.m |
8800 |
|
Rotation angle |
° |
360 |
|
Move speed |
km/h |
2-3 |
|
Dimension |
cm |
1470*230*280 |
|
Vehicle weight |
t |
9 |
(In the continuous improvement of products, technical parameters are based on practical consultation.)
