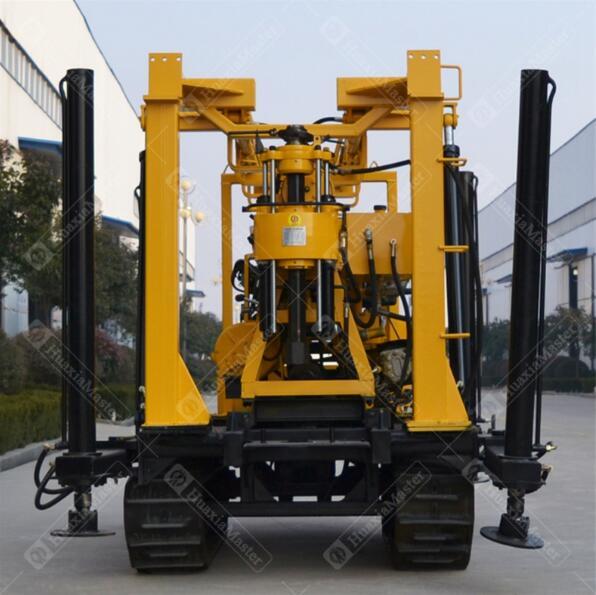

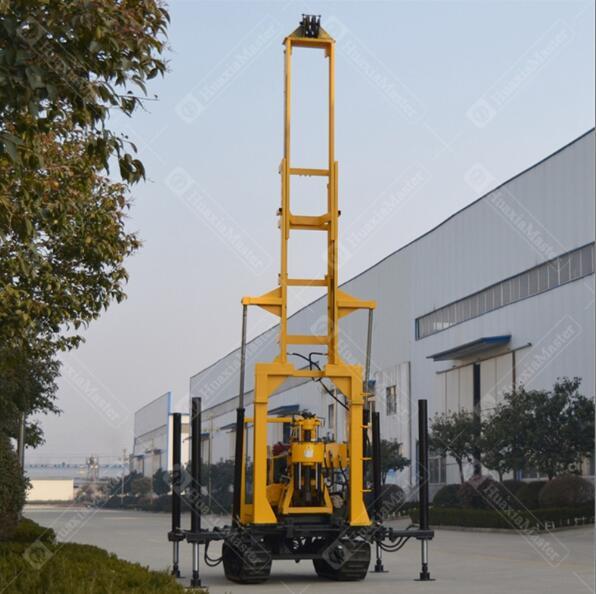

XYD-130 crawler hydraulic core drilling rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XYD-130 crawler hydraulic core drilling rig
1. The features of XYD-130 crawler hydraulic core drilling rig
The drilling rig adopts the automatic telescopic style with two high strength oil cylinder support, a set of hydraulic valve control rigs operating supine, which is time-saving, safe and reliable to maximize the benefits for users.
The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce car body vibration, and reduce fuel consumption greatly. It can walk on urban roads without hurting the road surface.
The chassis is equipped with four high strength threaded legs (or hydraulic high leg). The installation and adjustment is fast and convenient. It can be used for leveling of work plane, loading and unloading vehicle, which reduces the hoisting cost andimproves efficiency and works as auxiliary support.
The drilling rig uses 24V electricty to start the diesel engine , which greatly reduces the labor usage, especially in the cold season. When the diesel engine has difficulty activiting, this starting mode shows greater advantages.
2. Technical parameters of XYD-130 crawler hydraulic core drilling rig
XYD-130 crawler hydraulic core drilling rig
Drilling depth
130m
Maximum opening diameter
220mm
Diameter of the end hole
75mm
Drilling rod caliber
50mm
Drilling angle
90°-75°
Drill weight (no include power)
2600kg
Spindle
Spindle speed
142/285/570 r/min
Spindle stroke
450mm
Windlass
Max single line hoisting capacity
1600kg
Single line lifting speed
0.41/0.82/1.64 m/s
Drum diameter
140mm
Wire rope diameter
13mm
Wire rope capacity
27m
Mud pump
Type
horizontal single urn twin-action
Displacement
95 /77L/min
Maximum pressure
1.2mpa
Work pressure
0.7mpa
Water inlet caliber
30mm
Water to exit caliber
20mm
Triangle conveyer belt
B1575mm
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
