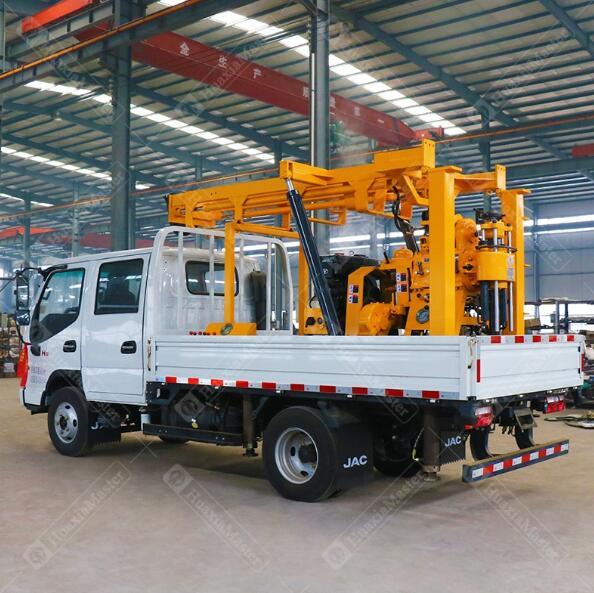

XYC-200 vehicle-mounted hydraulic core drilling rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XYC-200 vehicle-mounted hydraulic core drilling rig
1. Characteristics of XYC-200 vehicle-mounted hydraulic core drilling rig
XYC-200 is a multi-function vehicle-mounted hydraulic core drilling rig. Automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
It is equipped with high pressure, big flow BW160 mud pump, which can ensure drilling depth and diameter.
The rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
The hydraulic folding mast is safe and convenient to transport.
2.Applications of XYC-200 vehicle-mounted hydraulic core drilling rig
（1）road and high-rise building foundation exploration
（2）all kinds of concrete structure inspection holes
（3）river embankments
（4）subgrade grouting holes
（5）drilling and direct grouting
（6）civil water well
（7）ground temperature central air conditioners.
3. Parameters of XYC-200 vehicle-mounted hydraulic core drilling rig
XYC-200 vehicle-mounted hydraulic core drilling rig
Drilling depth(m)
30-200
Drilling diameter(mm)
300-75
Drilling angel(mm)
90-75
Spindle rotating speed(r/min)
64/128/287/557
Spindle stroke(mm)
450
Main hoisting capacity (single line)(Kg)
1600
Main hoisting line capacity(m)
35
Hoisting speed(r/s)
17/35/75/151
Wireline diameter(mm)
12.5
Mast height(mm)
7000
Mast effective height(mm)
6500
Kelly/active pipe(mm)
59*53
Drill rod(mm)
42/50/60
Drill rig weight(kg)
1150
Power unit
Model
ZS1115 diesel engine
Rated power
14.7kw/2200rpm
BW-160 mud pump
Rated flow(l/min)
160
Rated pressure(mpa)
1.3
Driving power(kw)
5.15
Main machine weight(kg)
190
Dimension(mm)
1110*725*965
Chassis
light truck
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
