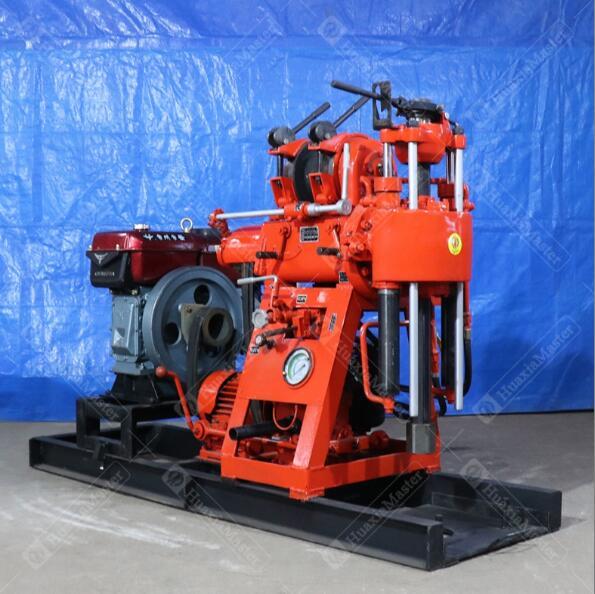

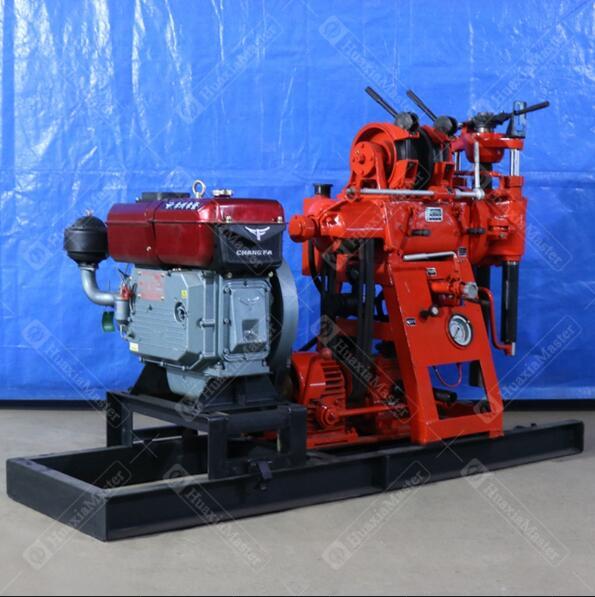

XY-100 hydraulic core drilling rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XY-100 hydraulic core drilling rig
1. Applications of XY-100 hydraulic core drilling rig
XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2. Specifications of XY-100 hydralic core drilling rig
XY-100 hydraulic core drilling rig Drilling depth
110
Maximum open hole caliber
220mm
End hole caliber
75mm
Drill rod caliber
50mm /42mm
Drilling angle
90
Drilling rig weight (exclude diesel engine)
610kg
Unity machine dimensions
2.1*0.9*1.3m
Spindle
Spindle speed
130/300/480/730/830/1045 r/min
Spindle stroke
450mm
Hoist
Max. lifting capacity with single rope
1600kg
Lifting speed with single rope
1.06/0.67/0.32 m/s
Wire rope caliber
13mm
Wire rope cubic measure
35mm
Hug floodgate caliber
254mm
Hug floodgate belt width
50mm
Distance between drill and hole
230mm
Mud pump
Type
Horizontal single-urn twin-action
Displacement (with diesel engine/electric motor)
170l/min
Max. pressure
1.5mpa
Work pressure
0.7mpa
Power
Diesel engine
S1100
Electric motor
Y160M-4 / 10KW
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
