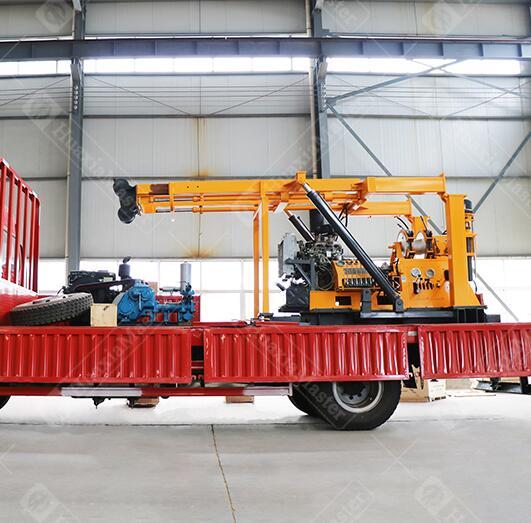

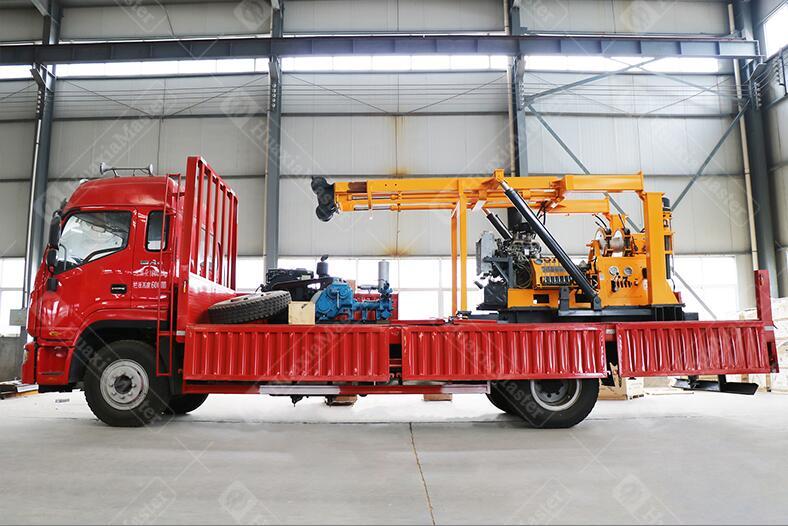

XYC-3 vehicle-mounted hydraulic core drilling rig
XYC-3 vehicle-mounted hydraulic core drilling rig
1.Features of XYC-3 vehicle-mounted hydraulic core drilling rig
(1) XYC-3 truck-mounted drilling rig is a multi-functional hydraulic truck-mounted vertical axis rotary drilling rig.
(2) The vehicle chassis adopts the medium truck chassis, and the drilling rig transmission system, winch, mud pump and other important accessories are installed on this chassis, the layout is reasonable and compact, and the operation is simple.
(3) Equipped with BW-250 mud pump, with high pressure and large flow, ensuring the drilling depth and hole diameter.
(4) The drilling rig is equipped with a mobile device, which can realize the forward and backward movement of the drilling rig host itself, which is convenient for wellhead operation.
(5) The hydraulic lifting and landing type automatic telescopic drilling tower of the drilling rig tower is safe and convenient to operate.
2. Applications of XYC-3 vehicle-mounted hydraulic core drilling rig
（1）geological survey and exploration
（2）road and high-rise building foundation exploration
（3）all kinds of concrete structure inspection holes
（4）river embankments
（5）subgrade grouting holes
（6）drilling and direct grouting
（7）civil use water wells
（8）ground temperature central air conditioners
3. Parameters of XYC-3 vehicle-mounted hydraulic core drilling rig
|
XYC-3 vehicle-mounted hydraulic core drilling rig |
|||
|---|---|---|---|
|
Drilling depth |
30-600 |
||
|
Drill hole diameter |
300-75 |
||
|
Diameter of the end hole |
75 |
||
|
Drill angle |
90-75 |
||
|
Spindle forward core speed |
30-1050 |
||
|
Spindle reverse core speed |
29-137 |
||
|
Spindle stroke |
600 |
||
|
Main winch lifting force |
3000 |
||
|
Main winch rope capacity |
65 |
||
|
Lifting speed |
0.3-1.9 |
||
|
Rope diameter |
12.5 |
||
|
Drill mast height |
7000 |
||
|
Drill effective height |
6500 |
||
|
Driving drilling rod |
59*53、70*63、79*89 |
||
|
Drilling rod diameter |
42/50/60 |
||
|
Weight |
3500 |
||
|
Engine |
Model:Yunnei YN27 |
||
|
BW-250 mud pump |
Rated flow (l/min) |
250 |
|
|
Rated power(mpa) |
7 |
||
|
Driving power(kw) |
15 |
||
|
Host weight(kg) |
500 |
||
|
Dimension(mm) |
1110*994*665 |
||
|
Chassis (For reference only) |
Model |
The truck 180 HP 4X2 truck |
|
|
Driving form |
4*2 |
||
|
Engine |
Model |
BF4M2012-16E4 |
|
|
Emission standard |
GB17691-2005 |
||
|
Rated power (kw) |
121 |
||
|
core speed (r/min) |
2200 |
||
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
