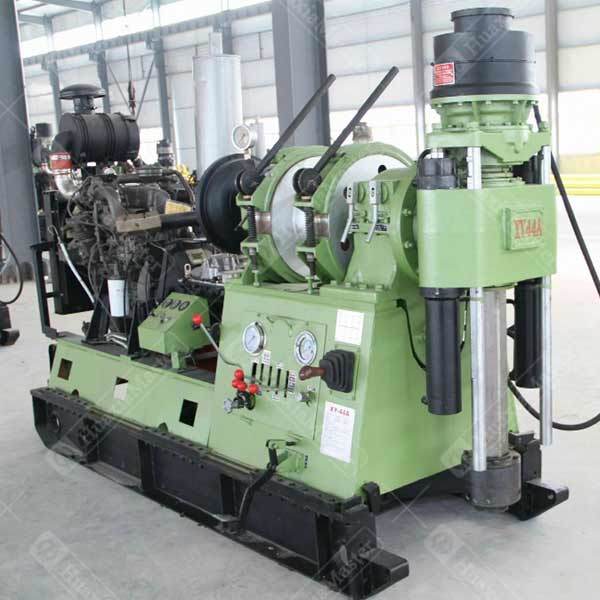

XY-44A hydraulic core drilling rig

XY-44A hydraulic core drilling rig

没有此类产品
Product description

1. Characteristics of XY-44A hydraulic core drilling rig

XY-44A is a hydraulic core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. HuaxiaMaster core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.

2. Applications of XY-44A hydraulic core drilling rig

(1)engineering geology exploration

(2)hydrology and core drilling

(3)large diameter foundation piles construction

3. Parameters of XY-44A hydraulic core drilling rig

XY-44A hydraulic core drilling rig

Drilling depth

600-1400m

Max open hole caliber

300mm

End hole caliber

75mm

Drilling rod diameter

60mm

Drilling angle

90-65

Drill rig moving stroke

450mm

Spindle



Spindle speed ( Diesel Engine)

Forward 60 97 169 187 276 301

284 487 521 847 1180 1490r/min

Reverse 65 201r/min



Spindle speed ( Electric Motor)

Forward 50 81 141 155 230 251

320 406 434 706 984 1247r/min

Reverse 54 167r/min

Spindle stroke

600mm

Spindle max. pressure force

90kn

Spindle inner diameter

96mm

Lifting capacity

120kn

Main hoist

Max.single line lifting capacity

45kn

Max.single line lifting speed

0-45m/s

Wire rope caliber

17.5-18.5mm

Hoist capacity of wire line

90-110m

Roller diameter

140mm

Wirerope diameter

6mm

Wire rope length

450m

Mud pump

Type

BW-250

Displacement

250 l/min

Work pressure

80kg/cm²

Water inlet pipe diameter

75 mm

Water outlet pipe diameter

50 mm

Power

Diesel engine

YC4E135-1   81KW

Electric motor

Y225S-4       37KW

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
