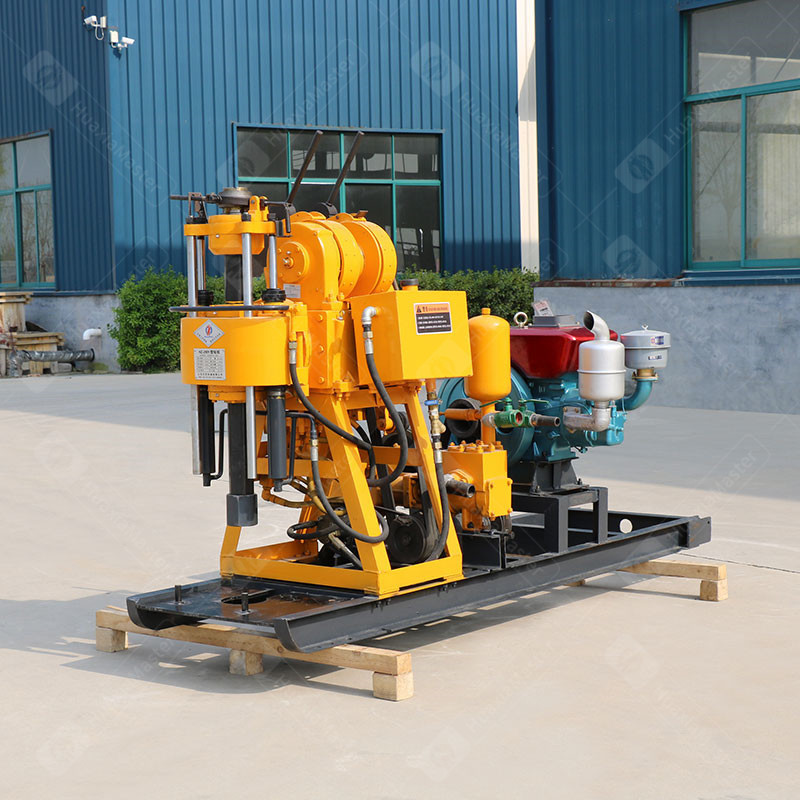

HZ-200Y hydraulic water well drilling rig

Keywords:

portable water well drilling rigs for sale well drilling rig for sale One man water well drilling

产品描述

  • 产品描述
    • Commodity name: HZ-200Y hydraulic water well drilling rig

    1. Applications of HZ-200Y hydraulic water well drilling rig

    Civil water well,geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, ground temperature central air conditioners.

    2. Features of HZ-200Y hydraulic water well drilling rig

    • adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.
    • the drilling rig is equipped with national patent technology-taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.
    • for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
    • vertical spindle are fixed by four groups of bearings to ensure that the water well drilling rig is rigid enough for gravel layer and other complex geological conditions.
    • we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.

    3. Specifications of HZ-200Y hydraulic water well drilling rig

    HZ-200Y hydraulic water well drilling rig

    Drilling depth

    200m

    Max open hole caliber

    300mm

    End hole caliber

    75mm

    Drill rod caliber

    60mm

    Drilling angle

    90°-75°

    Drill weight(without power)

    1100kg

    Triangle conveyer belt

    B950*4  B1700*3

    The main machine moving distance

    300mm

    Power

    Diesel engine 22HP   Electric motor 15kw

    Spindle

    Spindle speed

    64/128/287/557 r/min

    Spindle stroke

    450mm

    Hoist

    Max.lifting capacity

    2400kg

    Single line lifting speed

    0.41/ 0.82/1.64m/s

    Wirerope caliber

    13mm

    Wirerope length

    35m

    Hug floodgate caliber

    260mm

    Hug floodgate belt width

    70mm

    Mud pump

    Type

    Horizontal single-urn twin-action

    Displacement

    Diesel engine 170L/min

    Electric motor 150L/min

    Maximum pressure

    3Mpa

    Work pressure

    1.5Mpa

    Inlet pipe caliber

    40mm

    Outlet pipe caliber

    30mm

    Triangle conveyer belt

    B1728mm

    Hydraulic pump

    Type

    CBT—F—314

    Triangle conveyer belt

    B1100× 1

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
