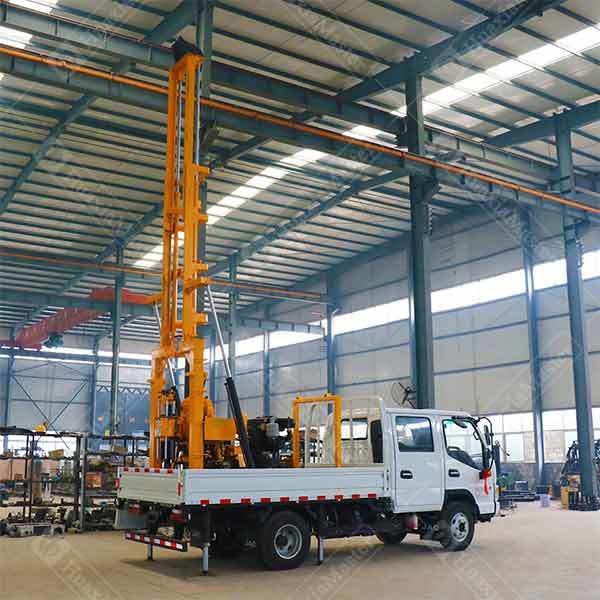

XYC-200 vehicle-mounted hydraulic water well drilling rig
XYC-200 vehicle-mounted hydraulic water well drilling rig
1. Characteristics of XYC-200 vehicle-mounted hydraulic water well drilling rig
- XYC-200 is a multi-functional hydraulic vehicle-mounted water well drilling rig.
- Automobile chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
- It is equipped with high pressure,big flow BW160mudpump,which can ensure drilling depth and diameter.
- The drilling rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
- The hydraulic folding mast is safe and convenient to transport.
2.Applications of XYC-200 vehicle-mounted hydraulic water well drilling rig
（1）road and high-rise building foundation exploration
（2）all kinds of concrete structure inspection holes
（3）river embankments
（4）subgrade grouting holes
（5）drilling and direct grouting
（6）civil water well
（7）ground temperature central air conditioners
3. Parameters of XYC-200 vehicle-mounted hydraulic water well drilling rig
|
XYC-200 vehicle-mounted hydraulic water well drilling rig |
||
|
Drilling depth(m) |
30-200 |
|
|
Drilling diameter(mm) |
300-75 |
|
|
Drilling angel(mm) |
90-75 |
|
|
Spindle rotating speed(r/min) |
64/128/287/557 |
|
|
Spindle stroke(mm) |
450 |
|
|
Main hoisting capacity (single line)(Kg) |
1600 |
|
|
Main hoisting line capacity (m) |
35 |
|
|
Hoisting speed(r/s) |
17/35/75/151 |
|
|
Wireline diameter(mm) |
12.5 |
|
|
Mast height(mm) |
7000 |
|
|
Mast effective height(mm) |
6500 |
|
|
Kelly/active pipe(mm) |
59*53 |
|
|
Drill rod(mm) |
42/50/60 |
|
|
Drill rig weight(kg) |
1150 |
|
|
Power unit |
Model |
ZS1115 diesel engine |
|
Rated power |
14.7kw/2200rpm |
|
|
BW-160 mud pump |
Rated flow(l/min) |
160 |
|
Rated pressure(mpa) |
1.3 |
|
|
Driving power(kw) |
5.15 |
|
|
Main machine weight (kg) |
190 |
|
|
Dimension(mm) |
1110*725*965 |
|
|
Chassis |
light truck |
|
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
