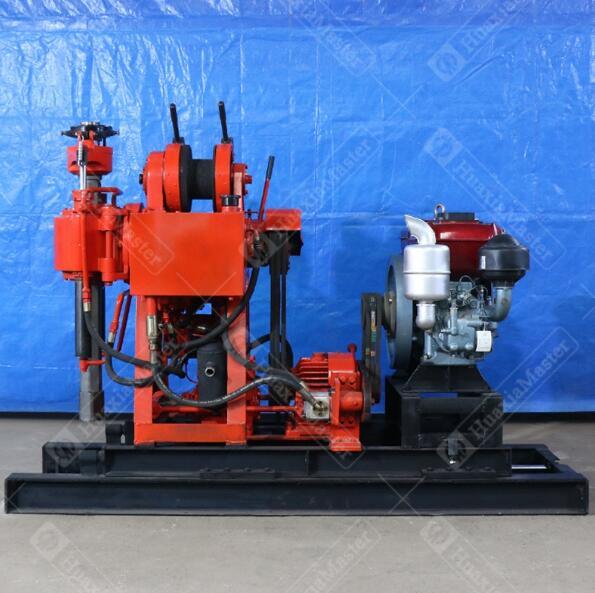

XY-130 hydraulic water well drilling rig

Keywords:

Soil Test Drilling Machine Shallow water well drilling rig Small portable borehole drilling machines

产品描述

  • 产品描述
    • Commodity name: XY-130 hydraulic water well drilling rig

    1.Features of XY-130 hydraulic water well drilling rig

    • Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
    • Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
    • This drilling rig adopts the conical clutch of national patent technology, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
    • Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission.

    2.Specifications of XY-130 hydraulic water well drilling rig

    XY-130 hydraulic water well drilling rig

    Drilling depth

    130m

    Maximum open hole caliber

    220mm

    End hole caliber

    75mm

    Drill rod caliber

    50mm

    Drilling angle

    90

    Drill weight (Not include power)

    600kg

    Spindle

    Spindle speed

    142 285 570r/min

    Spindle stroke

    450mm

    Hoist

    Max.single line hoisting capacity

    1600kg

    Single line lifting speed

    0.41/0.82/1.64m/s

    Drum diameter

    140mm

    Wire rope diameter

    13mm

    Tightrope caliber

    27m

    Mud pump

    Type

    Horizontal single urn twin-action

    Electric motor

    95/77 l/min

    Maximum pressure

    1.2mpa

    Work pressure

    0.7mpa

    Water inlet caliber

    30mm

    Water to exit caliber

    20mm

    Triangle conveyer belt

    B1575mm

    Matched driving power (diesel engine and motor)

    18hp diesel engine and 11kw motor

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
