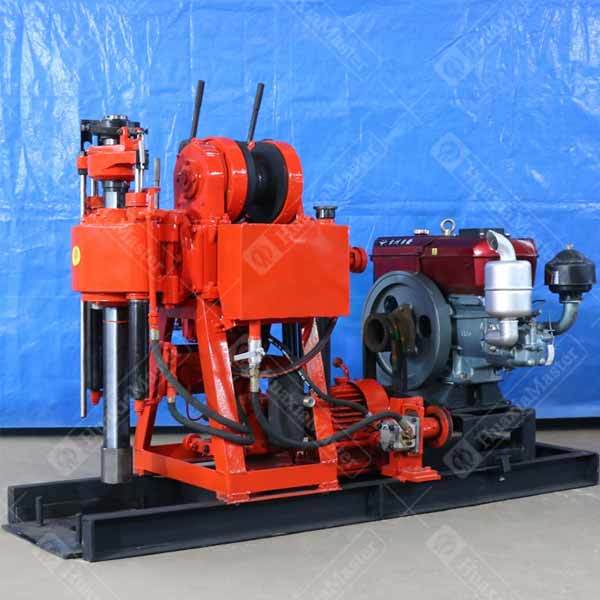

XY-150 hydraulic water well drilling rig
XY-150 hydraulic water well drilling rig
1.Applications of XY-150 hydraulic water well drilling rig
- geological survey
- geophysical exploration
- road and high-rise building foundation exploration
- water wells
- blasting holes and other drilling projects
2. Parameters of XY-150 hydraulic water well drilling rig
|
Drilling depth(m) |
150 |
|
Maximum opening diameter（mm） |
219 |
|
The final hole diameter（mm） |
73 |
|
Rod diameter（mm） |
42/50 |
|
Spindle speed (r/min) |
140/295/470/790/1010 |
|
Spindle stroke（mm） |
450 |
|
Hoisting capacity (kn) |
14 |
|
Steel wire diameter（mm） |
9.3 |
|
Maximum pressure (mpa) |
1.2 |
|
Working pressure (mpa) |
0.7 |
|
displacement（l/min） |
150 |
|
Hydraulic pump pressure (mpa) |
1.2 |
|
Hydraulic pump rotation speed (r/min) |
1800 |
|
Matched driving power (diesel engine and motor) |
S1105 diesel engine and 11kw motor |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
