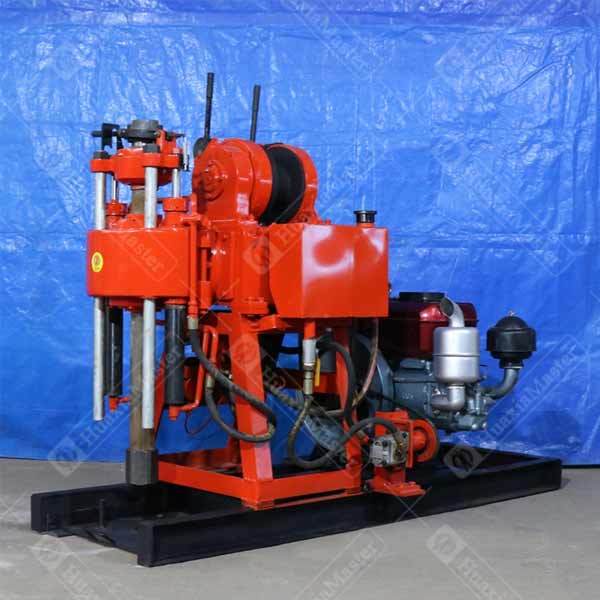

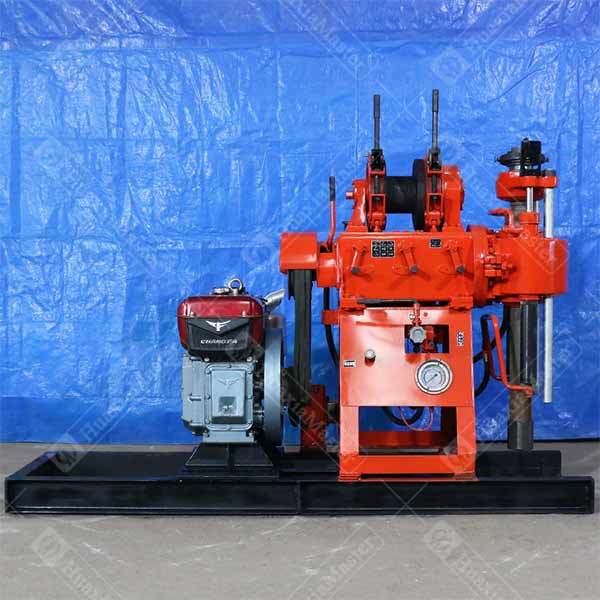

XY-200 hydraulic water well drilling rig
XY-200 hydraulic water well drilling rig
1. Applications of XY-200 hydraulic water well drilling rig
Wells, geological survey, geophysical exploration, road and high-rise building foundation exploration, blasting holes and other drilling projects.
2. Parameters of XY-200 hydraulic water well drilling rig
|
Maximum opening diameter |
400mm |
|
Maximum borehole depth |
200m |
|
Diameter of the end hole |
75mm |
|
Borehole dip angle |
90-75° |
|
Machine overall size |
2.75*0.95*1.60m |
|
Drill pipe diameter |
50mm |
|
Weight of drill rig(without power) |
760kg |
|
Spindle |
|
|
Shaft rotation speed |
71/142/310/20r/min |
|
Vertical axis stroke |
450mm |
|
Windlass |
|
|
Maximum lifting weight of single rope |
2008kg |
|
Drum lifting speed |
17/35/75/160 rm/s |
|
Wire rope diameter: |
13mm |
|
Wire rope capacity |
35mm |
|
Width of sluice |
70mm |
|
Mud pump |
|
|
Horizontal single cylinder double action |
flow：180L/min |
|
Maximum pressure |
1.5mpa |
|
Working pressure |
0.7mpa |
|
Inlet size |
50mm |
|
Outlet pipe diameter |
45mm |
|
Power |
|
|
Diesel oil |
22hp |
|
Rated speed |
2200r/min |
|
Electric machinery |
15kw |
|
Rated speed |
1460r/min |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
