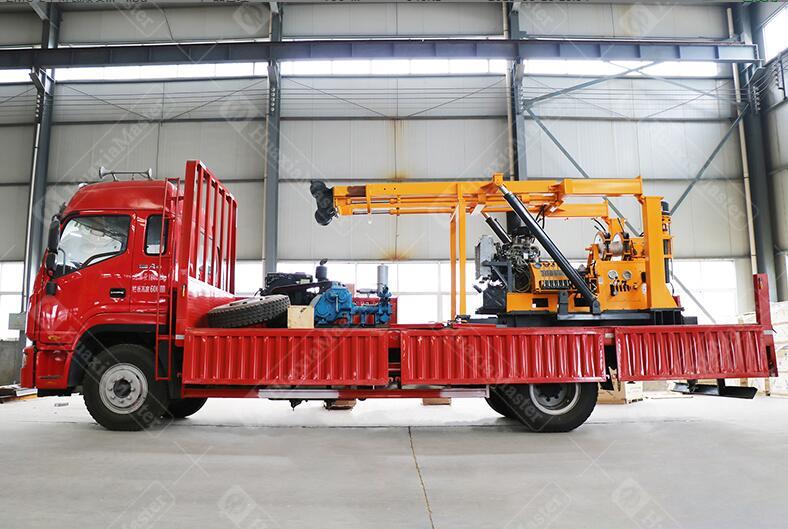

XYC-3 vehicle-mounted hydraulic water well drilling rig

XYC-3 vehicle-mounted hydraulic water well drilling rig

没有此类产品
Product description

1. Main features of XYC-3 vehicle-mounted hydraulic water well drilling rig

XYC-3 is a multi-functional hydraulic vehicle-mounted water well drilling rig.The drilling rig transmission system and hoist, mud pump and other important accessories are all installed on the chassis. The layout is reasonable and compact. And the operation is simple.

The drilling rig is equipped with high pressure and large flowBW-250 pump, which ensures the drilling depth and borehole diameter.

2. Applications of XYC-3 vehicle-mounted hydraulic water well drilling rig

geological survey and exploration

road and high-rise building foundation exploration

all kinds of concrete structure inspection holes

river embankments

subgrade grouting holes

drilling and direct grouting

civil use water wells

ground temperature central air conditioners

3. Parameters of XYC-3 vehicle-mounted hydraulic water well drilling rig

XYC-3 vehicle-mounted hydraulic water well drilling rig

Drill depth

30-600

Drill hole diameter

300-75

Diameter of the end hole

75

Drill angle

90-75

Spindle forward core speed

30-1050

Spindle reverse core speed

29-137

Spindle stroke

600

Main winch lifting force
(with single line)

3000

Main winch rope capacity

65

Lifting speed

0.3-1.9

Rope diameter

12.5

Drill mast height

7000

Drill effective height

6500

Driving drilling rod

59*53、70*63、79*89

Drilling rod diameter

42/50/60

Weight

3500

Engine

Model:Yunnei YN27

BW-250 mud pump

Rated flow (l/min)

250

Rated power(mpa)

7

Driving power(kw)

15

Host weight(kg)

500

Dimension(mm)

1110*994*665



Chassis

(For reference only)

Model

180 HP 4X2 truck

Driving  form

4*2

Engine

Model

BF4M2012-16E4

Emission standard

GB17691-2005

Rated power (kw)

121

core speed (r/min)

2200

External dimension (mm)

8998*2496*2900

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
