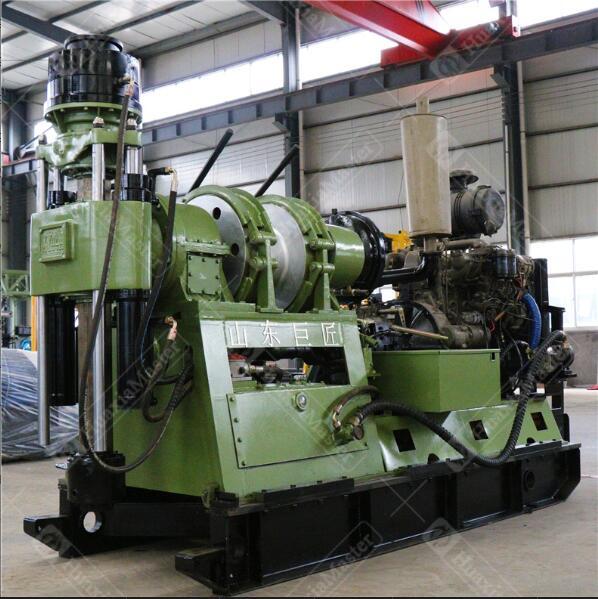

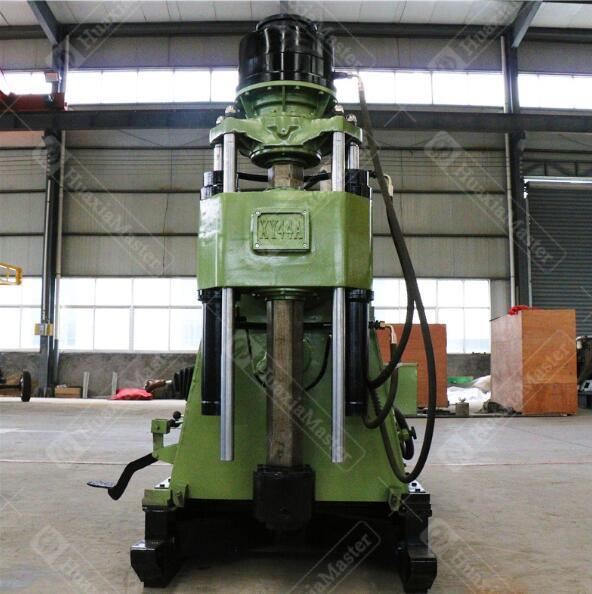

XY-44A hydraulic water well drilling rig
XY-44A hydraulic water well drilling rig
1. Characteristics of XY-44A hydraulic water well drilling rig
XY-44A is a water well drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. HuaxiaMaster water well drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
2. Applications of XY-44A hydraulic water well drilling rig
- core drilling
- engineering geology exploration
- hydrology and water well drilling
- large diameter foundation piles construction
3.Parameters of XY-44A hydraulic water well drilling rig
|
XY-44A hydraulic water well drilling rig |
|
|
Drilling depth |
600-1400m |
|
Max open hole caliber |
300mm |
|
End hole caliber |
75mm |
|
Drilling rod diameter |
60mm |
|
Drilling angle |
90-65 |
|
Drill rig moving stroke |
450mm |
|
Spindle |
|
|
Spindle speed ( Diesel Engine) |
Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min |
|
Reverse 65 201r/min |
|
|
Spindle speed ( Electric Motor) |
Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min |
|
Reverse 54 167r/min |
|
|
Spindle stroke |
600mm |
|
Spindle max. pressure force |
90kn |
|
Spindle inner diameter |
96mm |
|
Lifting capacity |
120kn |
|
Main hoist |
|
|
Max.single line lifting capacity |
45kn |
|
Max.single line lifting speed |
0-45m/s |
|
Wire rope caliber |
17.5-18.5mm |
|
Hoist capacity of wire line |
90-110m |
|
Roller diameter |
140mm |
|
Wirerope diameter |
6mm |
|
Wire rope length |
450m |
|
Mud pump |
|
|
Type |
BW-250 |
|
Displacement |
250 l/min |
|
Work pressure |
80kg/cm² |
|
Water inlet pipe diameter |
75 mm |
|
Water outlet pipe diameter |
50 mm |
|
Power |
|
|
Diesel engine |
YC4E135-1 81KW |
|
Electric motor |
Y225S-4 37KW |
