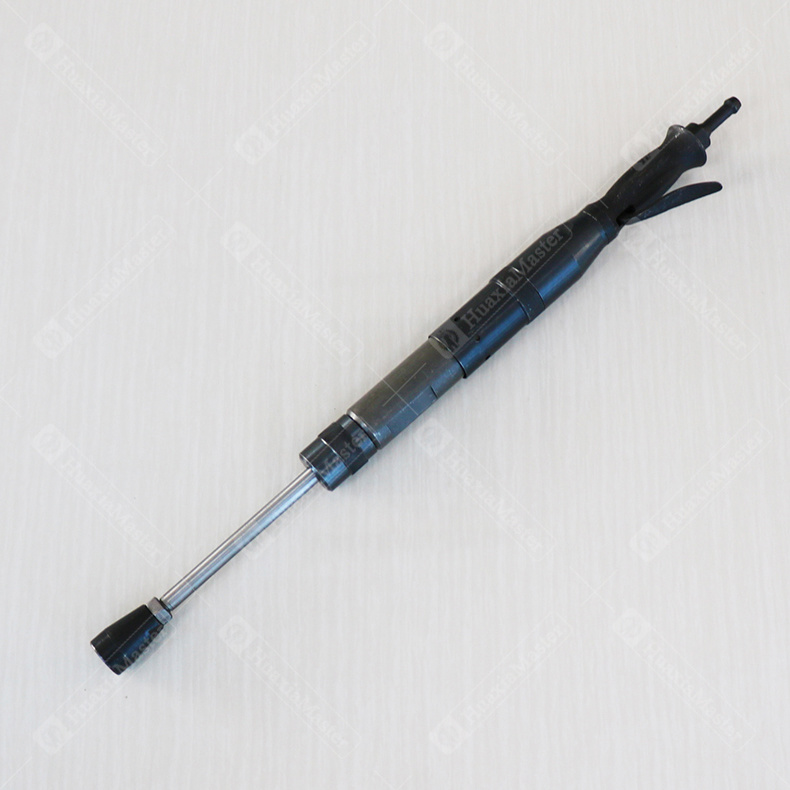

D4 pneumatic tamping machine

D4 pneumatic tamping machine is used as the power for compressed air. It is suitable for the tamping of casting sand type, and can also be used for concrete and brick work. Type D4, relatively lightweight, suitable for tamping sand core or small sand type.

Keywords:

D4 pneumatic tamping machine

产品描述

  • 产品描述
    • Commodity name: D4 pneumatic tamping machine

    1. Uses for D4 Pneumatic Tamping Machine

    D4 pneumatic tamping machine is used as the power for compressed air. It is suitable for the tamping of casting sand type, and can also be used for concrete and brick work. Type D4, relatively lightweight, suitable for tamping sand core or small sand type.

    2. Parameters of D4 Pneumatic Tamping Machine

    Specification

    Unit

    D4

    Weight

    kg

    3.6

    Working pressure

    mpa

    0.63

    Air consumption

    m³/min

    0.35

    Number of impacts

    times/min

    800

    Piston diameter

    mm

    20

    Structural stroke

    mm

    128

    Hammer diameter

    mm

    36

    Air pipe inner diameter

    mm

    13

    Full length

    mm

    565

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
