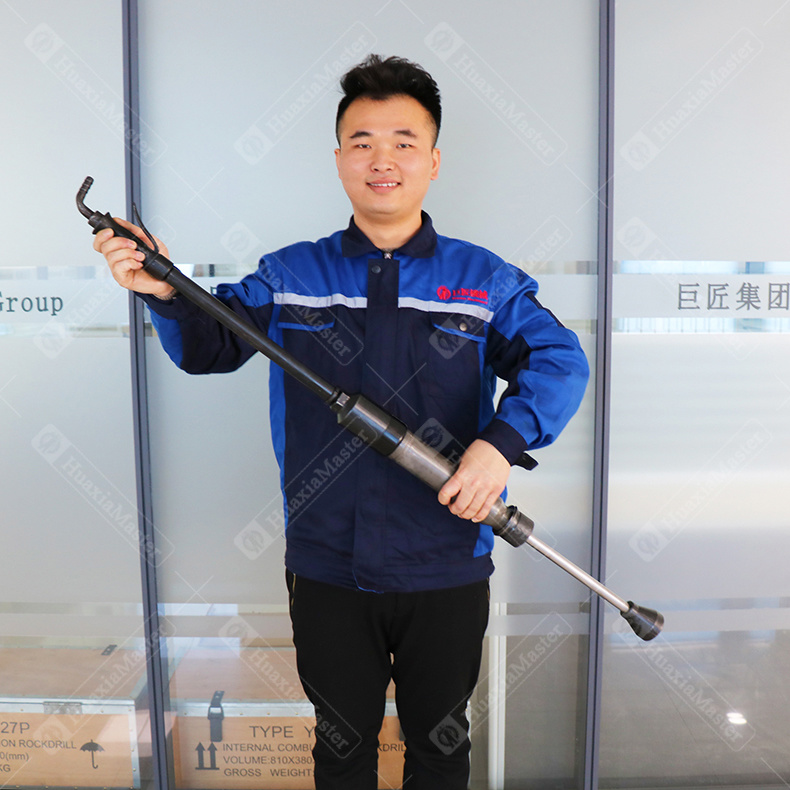

D9 pneumatic tamping machine
D9 pneumatic tamping machine
1.Uses for D9 Pneumatic Tamping Machine
D9 pneumatic tamping machine is used as the power for compressed air. It is suitable for the tamping of casting sand and can also be used for concrete and brick. Type D9 has a large working capacity and is suitable for tamping work of large casting sand type.
2.Parameters of D9 Pneumatic Tamping Machine
|
D9 Pneumatic tamping machine |
||
|---|---|---|
|
Weight |
kg |
9 |
|
Working pressure |
mpa |
0.63 |
|
Air consumption |
m³/min |
0.65 |
|
Number of impacts |
times/min |
600 |
|
Piston diameter |
mm |
32 |
|
Structural stroke |
mm |
207 |
|
Hammer diameter |
mm |
54 |
|
Air pipe inner diameter |
mm |
13 |
|
Full length |
mm |
1055 |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
