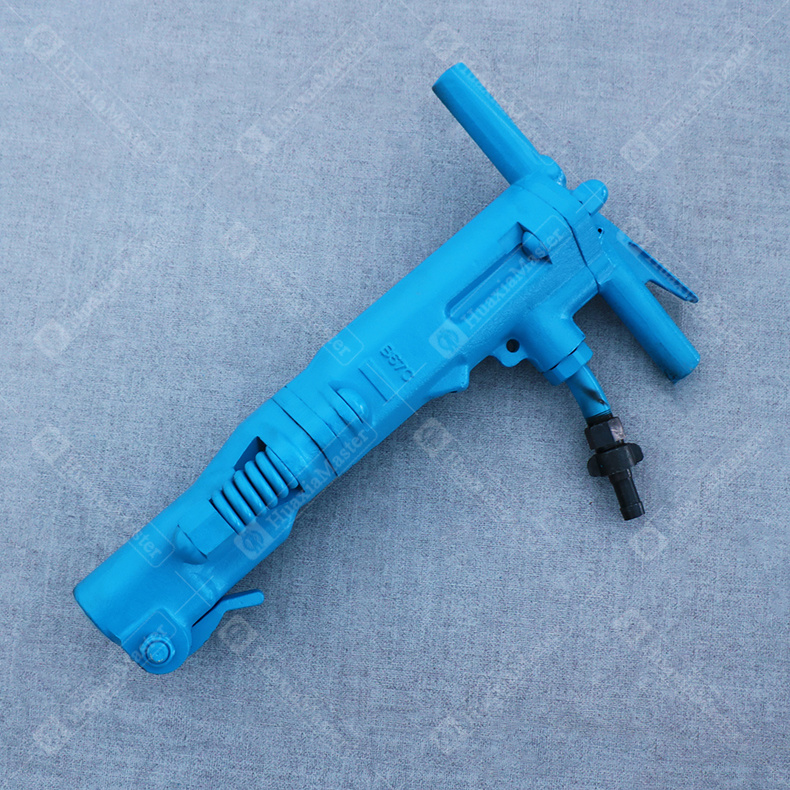

B67C pneumatic breaker

B67C pneumatic breaker

没有此类产品
Product description

1.Introduction of B67C pneumatic breaker

The B67C pneumatic breaker is a compressed air-powered tool. The compressed air is distributed from the valve wheel to the two ends of the cylinder to reciprocate the hammer. The hammer is impacted on the steel tail and the steel is brazed into the concrete layer. Split it into pieces.

2.Parameters of B67C pneumatic breaker

Weight

30

(kg)

Total length

615

(mm)

Piston diameter

50.8

(mm)

Working pressure

0.63

(mpa)

Impact energy

37±10%

(j)

Impact power

0.9±10%

(kw)

Impact frequency

24±5%

(hz)

Air consumption

42±15%
2.52±15%

(l/s)

(m³/min)

Air pipe inner diameter

19

(mm)

Bit Head Size

32*152
1-1/4×6

(mm)
(in)

28*152
1-1/8×6

(mm)
(in)
