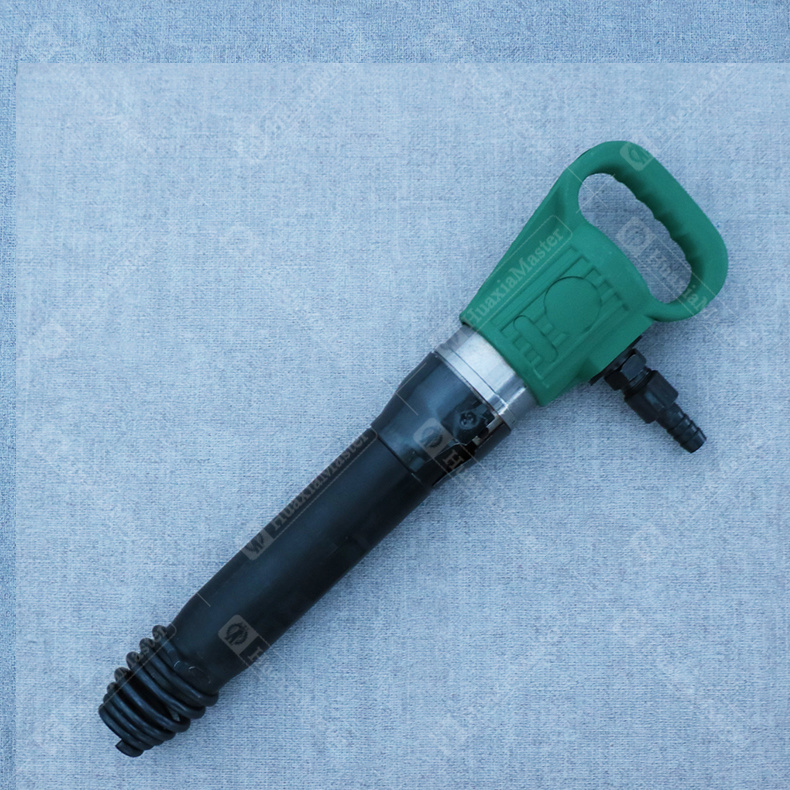

G10 air pick
G10 air pick
1.Uses for G10 air pick
G10 air pick is widely used in coal mining and break soft ore; break concrete foundation, clay, destroy a strong or frozen formation, Ice breaking; it is applicable for conditions where impact force is required.
2.Parameters of G10 air pick
|
Weight |
10.9 |
（kg） |
|
Total length |
550 |
（mm） |
|
Piston weight |
0.9 |
（kg） |
|
Piston diameter |
38 |
（mm） |
|
Piston stroke |
155 |
（mm） |
|
Impact energy |
43 |
（j） |
|
Impact frequency |
16 |
（hz） |
|
Working pressure |
0.4-0.63 |
（mpa） |
|
Air consumption |
26 |
（l/s） |
|
Air pipe inner diameter |
19 |
(mm） |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
