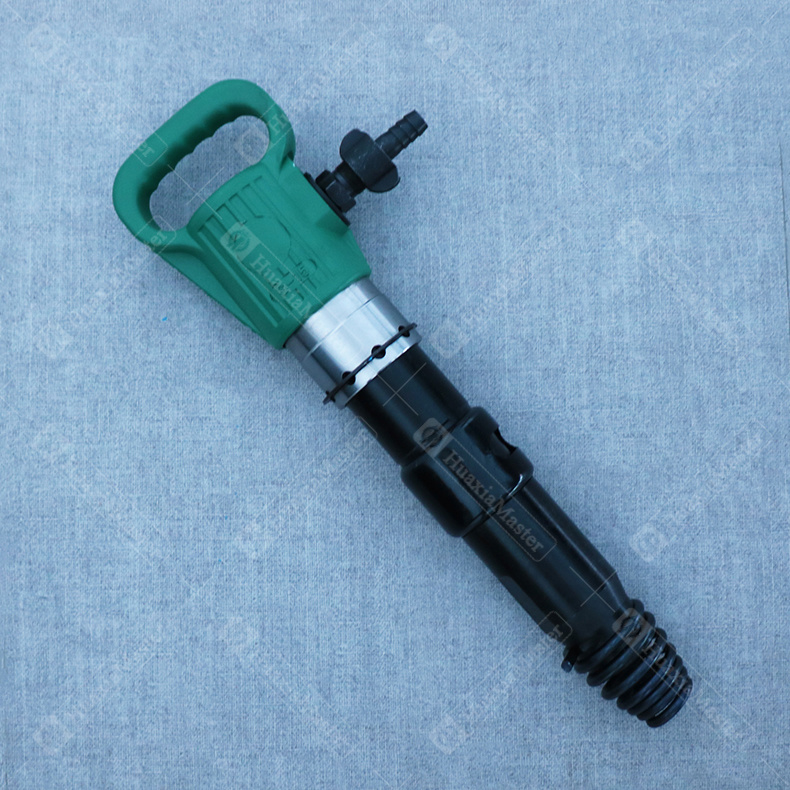

G15 air pick
G15 air pick
1.Uses for G15 air pick
G15 air pick is mainly used for crushing operations of reinforced concrete buildings, cement, frozen soil layers, ice layers and road construction. Also it is applicable for conditions where impact force is required, such as in quarrying, coal mining and machinery industries.
2.Parameters of G15 air pick
|
Weight |
12 |
（kg） |
|
Total length |
560 |
（mm） |
|
Piston weight |
1.12 |
（kg） |
|
Piston diameter |
42 |
（mm） |
|
Piston stroke |
155 |
（mm） |
|
Impact energy |
55 |
（j） |
|
Impact frequency |
16 |
（hz） |
|
Working pressure |
0.4-0.63 |
（mpa） |
|
Air consumption |
26 |
（l/s） |
|
Air pipe inner diameter |
19 |
(mm） |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
