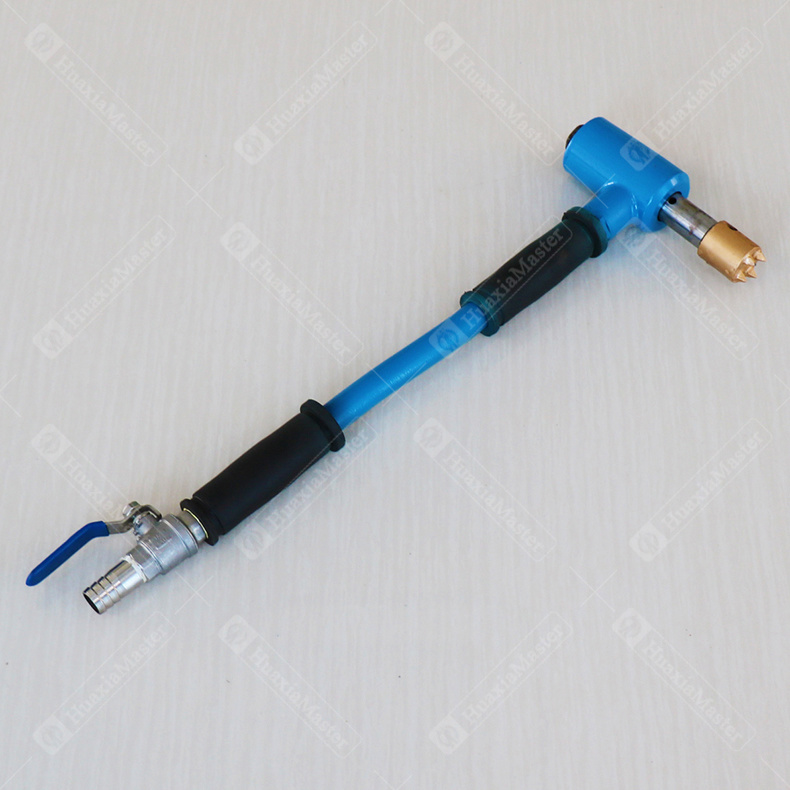

ZMC-1 hand-held single-head concrete scabbler

1.Applications of ZMC-1 hand-held single-head concrete scabbler

ZMC-1 hand-held single-head concrete scabbler chiseling machine is mainly used in the excavation of highway, railway bridge deck and box girder concrete surface layer, building wall, ground, and municipal engineering concrete surface layer repair and renovation. In the process of use, not only the work efficiency and quality are improved, but also the working surface is evenly uniformed. After the surface layer is floated, the paving concrete is firmly bonded, and finally the service life and safety factor of the working object are greatly improved.

2.Parameters of ZMC-1 hand-held single-head concrete scabbler

• Weight: 3KG
• Number of hits: 1*2400 times/min
• Discharge volume: 0.6m³
• Pressure: 5kg
• Chisel head diameter: 31mm
• Chisel bundle diameter: 31mm
• Chiseling ability: 3.5~5m2/h
• Chiseling depth: 3~5mm
