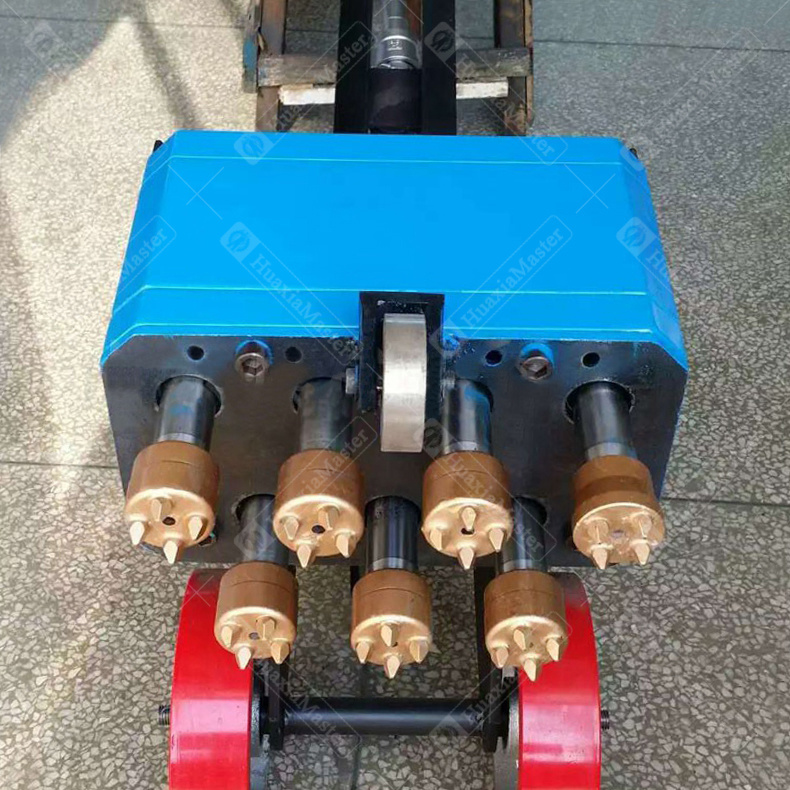

ZMT-7Q enhanced hand-pushing concrete scabbler
ZMT-7Q enhanced hand-pushing concrete scabbler
1.Introduction of ZMT-7Q enhanced hand-pushing concrete scabbler
The ZMT-7Q enhanced hand-pushing concrete scabbler chiseling machine is mainly designed for the removal of concrete surface floats on the concrete surface of bridge decks, bridges, parking lots and other concrete floors to achieve uniform roughness. For the treatment of all kinds of old ground before the renovation; remove the damaged ground part; epoxy ground chisel; the ground does not wear surface.
2. Features of ZMT-7Q enhanced hand-pushing concrete scabbler
（1）The piston sleeve, shaft and chisel head increase the weight and enhance the impact force;
（2）Highly sealed silicone sealing device with sufficient gas consumption;
（3）Four-edge alloy chisel head, deep chisel, and can be used for multiple grinding.
3.Parameter of ZMT-7Q enhanced hand-pushing concrete scabbler
|
Model |
Weight KG |
Impact Frequency （Time/Min） |
Displacement M³ |
Pressure KG |
Chisel Head Diameter*No. |
Chisel Width mm |
Chisel Ability ㎡/h |
Chisel Depth mm |
|---|---|---|---|---|---|---|---|---|
|
7 Heads |
90 |
7*2200 |
3 |
6 |
43mm*7 |
300 |
25-80 |
3-10 |
|
Note |
The above-mentioned chiseling ability refers to the reference value of concrete strength between C30 and C40. The concrete strength and the sharpness of the chiseling head are different, and the chiseling efficiency will be different. |
|||||||
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
