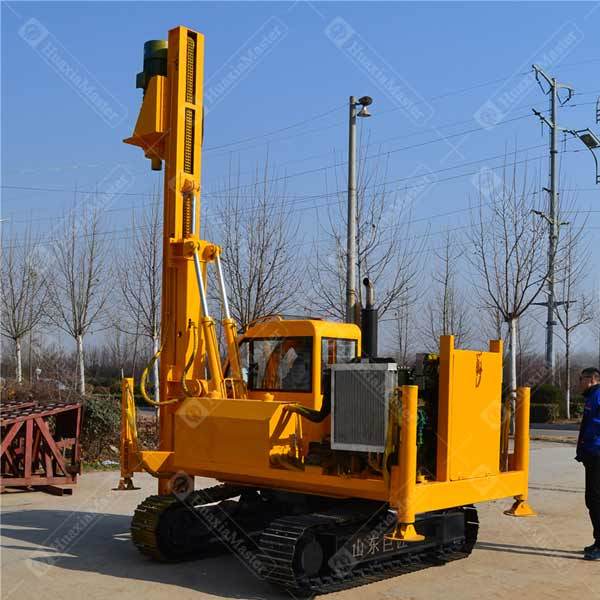

LXD series crawler long screw pile driver
LXD series crawler long screw pile driver
1.Introductions of LXD series crawler long screw pile driver
LXD series crawler long screw pile driver is a kind of pile driving equipment which drives the drill pipe bit to drill holes underground through the power head. It is mainly suitable for the construction of the hole-forming operation in the building foundation engineering. It is widely used in the construction of grouting piles, diaphragm walls, foundation reinforcement and other foundation foundations.
2.Features of LXD series crawler long screw pile driver
The movement mechanism of the crawler pile driver is driven by the tracked power. The rotating mechanism is driven by the speed reducer with the medium speed hydraulic motor. With the combination of four leg hydraulic cylinders, the pile machine can achieve 360 degrees of rotation. It has the advantages of smooth rotation, no shock, no vibration, good stability of the whole machine and long service life.
3.Parameters of LXD series crawler long screw pile driver
|
Item |
Unit |
Model |
||
|
LXD-6 |
LXD-8 |
LXD-10 |
||
|
Rotation angle |
° |
360 |
360 |
360 |
|
Maximum borehole diameter |
mm |
300-800 |
300-800 |
300-800 |
|
Maximum drilling depth |
m |
6 |
8 |
10 |
|
Vertical bar height |
m |
8.45 |
10.45 |
12.45 |
|
Recumbent pipe length |
mm |
6950 |
8950 |
10950 |
|
Generator set power |
kw |
30 |
40 |
40 |
|
Vehicle weight |
t |
7.5 |
8.5 |
9.2 |
|
Gradient |
° |
25 |
25 |
25 |
|
Moving speed |
km/h |
2.6 |
2.6 |
2.6 |
(In the continuous improvement of products, technical parameters are based on practical consultation.)
