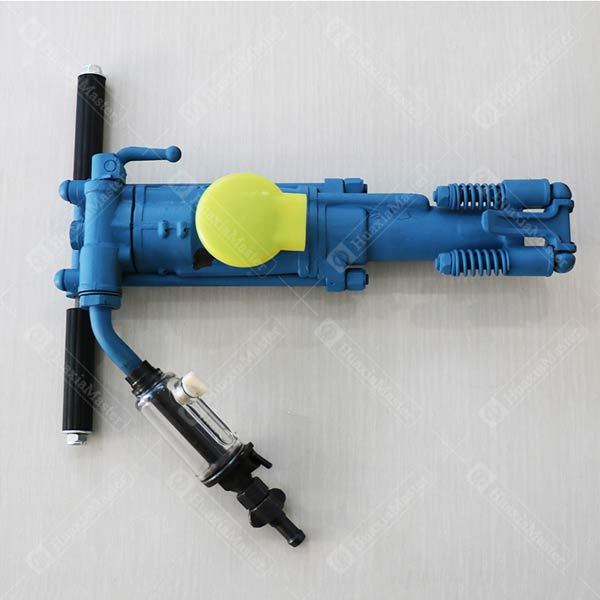

    • Commodity name: Y24 hand-held pneumatic rock drill

    1.Introduction of Y24 Hand-held Pneumatic Rock Drill

    Y24 hand-held pneumatic rock drill has a wide range of applications and is suitable for drilling downholes on medium-hard or hard (f=8~18) rocks. It can be widely used in open pit mining, quarrying and stone construction sites. Lower blasthole and secondary crushing operation. This machine is dry rock drilling. To ensure good lubrication, the machine is equipped with a FY2008 oiler.

    2.Parameters of Y24 Hand-held Pneumatic Rock Drill

    Weight

    24

    kg

    Length

    604

    mm

    Cylinder diameter

    70

    mm

    Piston stroke

    70

    mm

    Working pressure

    0.4-0.63

    mpa

    Impact frequency

    ≥27

    hz

    Air consumption

    ≤55

    L/s

    Air pipe inner diameter

    19

    mm

    Shank diameter

    22*108

    mm

    FY200B type oiler

    Oil content

    200

    (ml)

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
