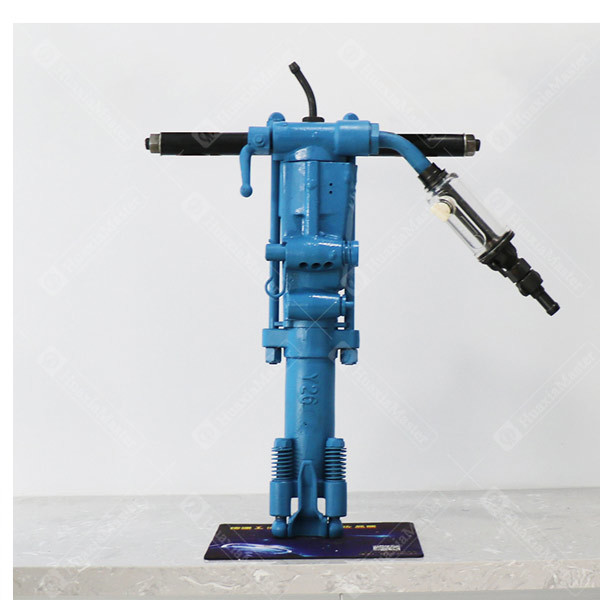

Y26 hand-held pneumatic rock drill
Y26 hand-held pneumatic rock drill
1.Introduction of Y26 hand-held pneumatic rock drill
Y26 hand-held pneumatic rock drill is mainly used for drilling and blasting in secondary mines, railways, water conservancy and stone works, and can perform dry and wet rock drilling for medium and hard rock in vertical or inclined.
2.Parameters of Y26 hand-held pneumatic rock drill
|
Dimensions |
650*534*125 |
mm |
|
Cylinder diameter |
65 |
mm |
|
Piston stroke |
70 |
mm |
|
Working pressure |
0.4 |
mpa |
|
Impact energy |
≥30 |
j |
|
Rock drilling frequency |
≥23 |
hz |
|
Rock drilling gas consumption |
≤47 |
l/s |
|
Idling speed |
≥200 |
r/min |
|
Noise |
≤124 |
dB（A） |
|
Working water pressure |
0.3-0.35 |
mpa |
|
Air pipe inner diameter |
19 |
mm |
|
Water pipe inner diameter |
13 |
mm |
|
Punch diameter |
34-42 |
mm |
|
Hole depth |
5 |
m |
|
Shank size |
22*108 |
mm |
Shandong Master Machinery Group specializes in supplying pneumatic rock drill，the main models are: QCZ-1, QCZ-2, Y6, Y8, Y10, Y24, Y26, YO18, Y19A, Y20LY, 7665, 7655, YT23, YT24, YT27, YT28, YT29A ,YSP45,YGZ-90.
