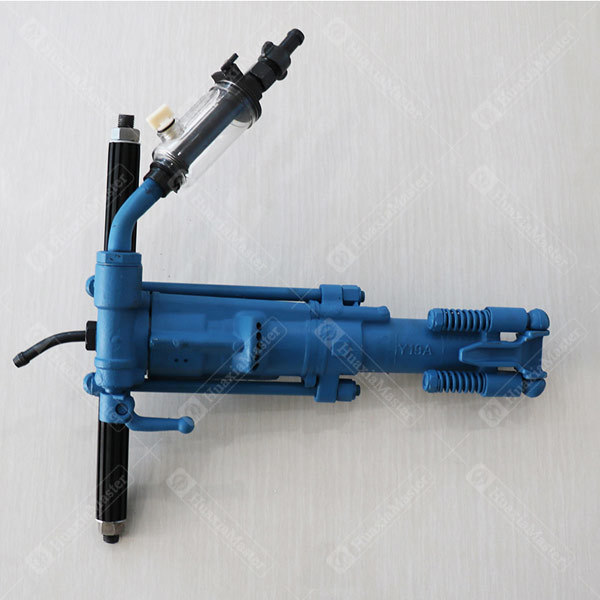

Y19A hand-held air leg rock drill
Y19A hand-held air leg rock drill
1.Introduction of Y19A hand-held air leg rock drill
Y19A hand-held air leg rock drill is mainly used for small quarry stone exploration, small mine mining operations such as coal mines and limestone mines, and rock blasting in mountain road construction. The machine is also suitable for rock drilling in secondary blasting and other engineering construction of large mines. The Y19A hand-held legged dual-purpose rock drill is matched with FT100 air leg and can be dry on medium or hard rock. Wet rock drilling. The machine can be used with small air compressors of 1.5-2.5 cubic meters per minute, and its performance is superior to similar products.
2.Parameters of Y19A hand-held air leg rock drill
|
Type |
Y19A |
|
Weight |
19 (kg) |
|
Length |
600 (mm) |
|
Impact energy |
0.4mpa:≥28(j) |
|
0.5mpa:≥40(j) |
|
|
Impact frequency |
0.4mpa:≥28(hz) |
|
0.5mpa:≥35(hz) |
|
|
Air consumption |
0.4mpa:≤37(l/s) |
|
0.5mpa:≤43(l/s) |
|
|
Working water pressure |
0.2-0.3(mpa) |
|
Air pipe inner diameter |
φ19(mm) |
|
Water pipe inner diameter |
φ13(mm) |
|
Rock drill hole diameter |
φ32-φ42(mm) |
|
Rock drill hole depth |
5(m) |
|
Shank size |
22*108(mm) |
Shandong Master Machinery Group specializes in supplying pneumatic rock drill，the main models are: QCZ-1, QCZ-2, Y6, Y8, Y10, Y24, Y26, YO18, Y19A, Y20LY, 7665, 7655, YT23, YT24, YT27, YT28, YT29A ,YSP45,YGZ-90.
