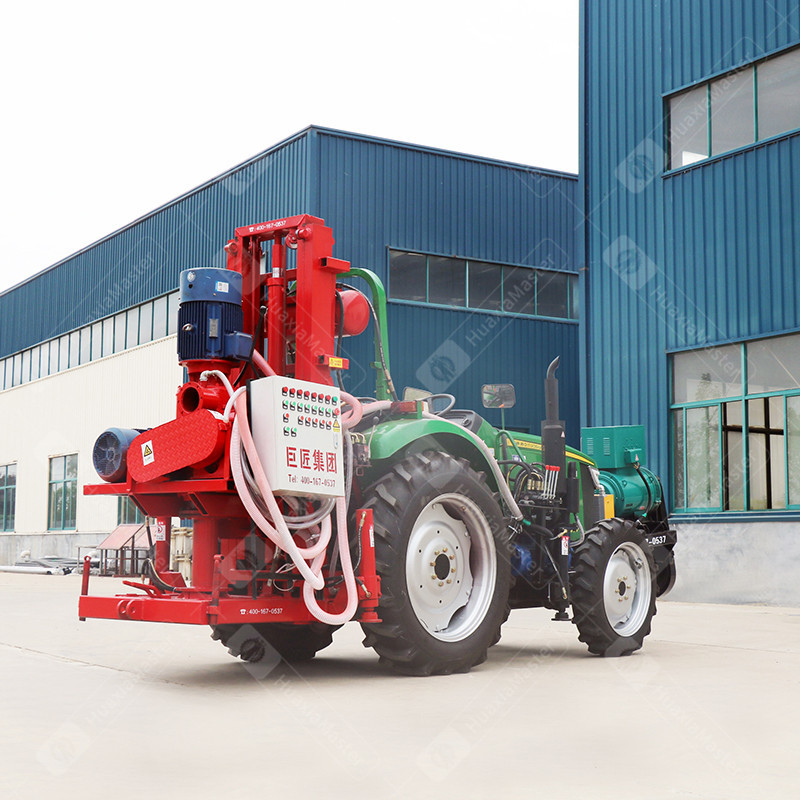

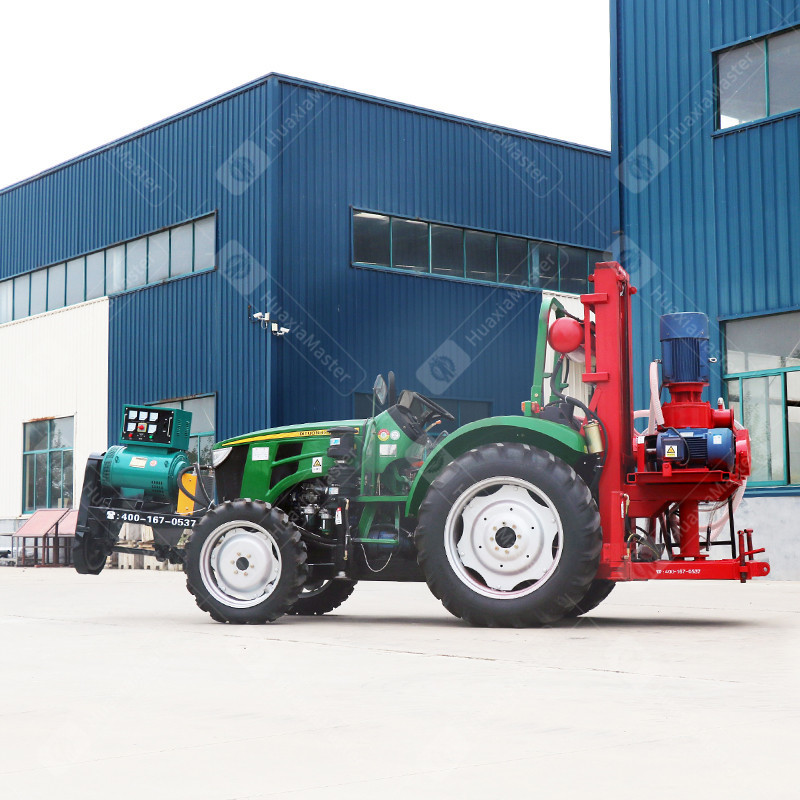

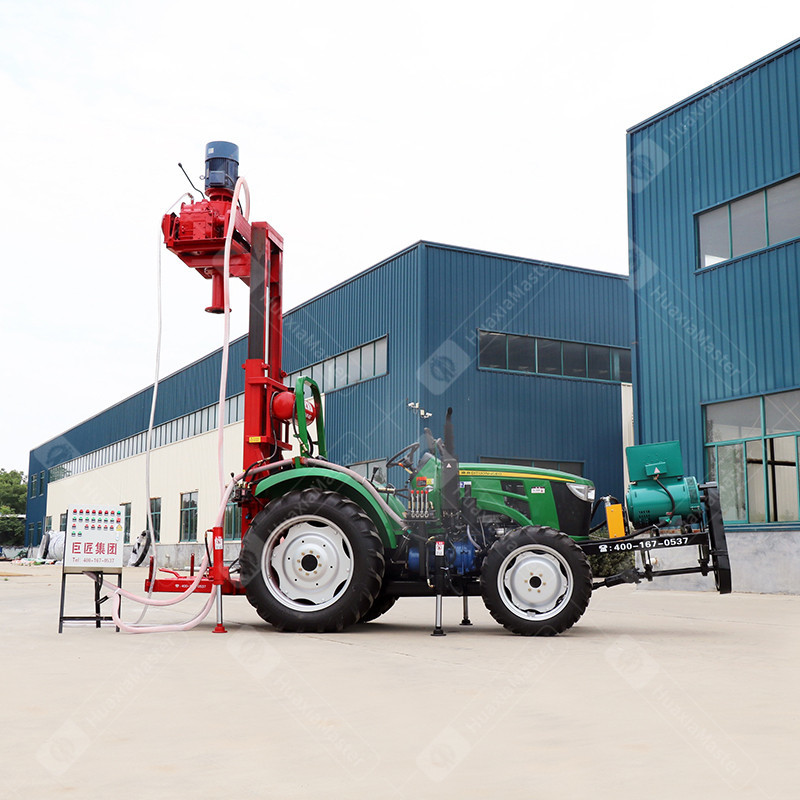

JZF-C series Tractor carrying forward and reverse circulation drilling rig

JZF-C series Tractor carrying forward and reverse circulation drilling rig

没有此类产品
Product description

1.Brief introduction of JZF-C series tractor-mounted positive and negative circulation water well drilling rig

JZF-C series tractor-mounted positive and negative circulation water well drilling rig is a vehicle-mounted drilling rig that integrates the functions of positive circulation and reverse circulation drilling. The positive circulation is mainly used for drilling sandy soil, and the reverse circulation is mainly used for slime or pebble. This drilling rig can easily handle the drilling of soil, sand, slime, and pebble layers. It has been widely used in drilling wells, farm irrigation wells, and engineering pile holes.

2.Features of JZF-C series tractor-mounted positive and negative circulation water well drilling rig

  1. With the tractor as the carrier, the performance is stable and the field transfer is convenient.
  2. The tractor chassis adopts electric start, which reduces the labor intensity of the operator and is convenient to start in the cold season.
  3. Equipped with hydraulic outriggers, used for leveling of the drilling rig to ensure the stability of the fuselage.
  4. The generator is placed in front of the drilling rig, and it is convenient to switch between diesel and electricity.
  5. The layout of operation handle and distribution box is compact and reasonable, which is convenient for operation.
  6. It integrates the drilling functions of positive and reverse circulation, which can meet the drilling requirements of different geology.
  7. Equipped with a 5-speed gearbox, which can meet the different requirements of different formations on speed.

​​​​​​​3.Technical parameters of JZF-C series tractor-mounted positive and negative circulation water well drilling rig

Drilling diameter

mm

300-1000

Positive circulation drilling depth

m

22-130

Combination of positive and negative circulation drilling depth

m

0-60 (both positive and negative circulation well drilling)

60-130 (positive circulation drilling)

Drill pipe specifications

mm

Φ140*2000

Drilling speed

r/min

20-126(five-speed variable)

Large pump motor

kw

15

Drive motor

kw

11

Vacuum pump

kw

4

Hydraulic oil pump

kw

4

Hydraulic oil pump

kw

4

Tractor chassis

hp

≥80

Rig weight

T

4.7

Transport size

mm

5800*2100*2700

Note: The drilling rig accepts customization, and the parameters will be changed as above.
