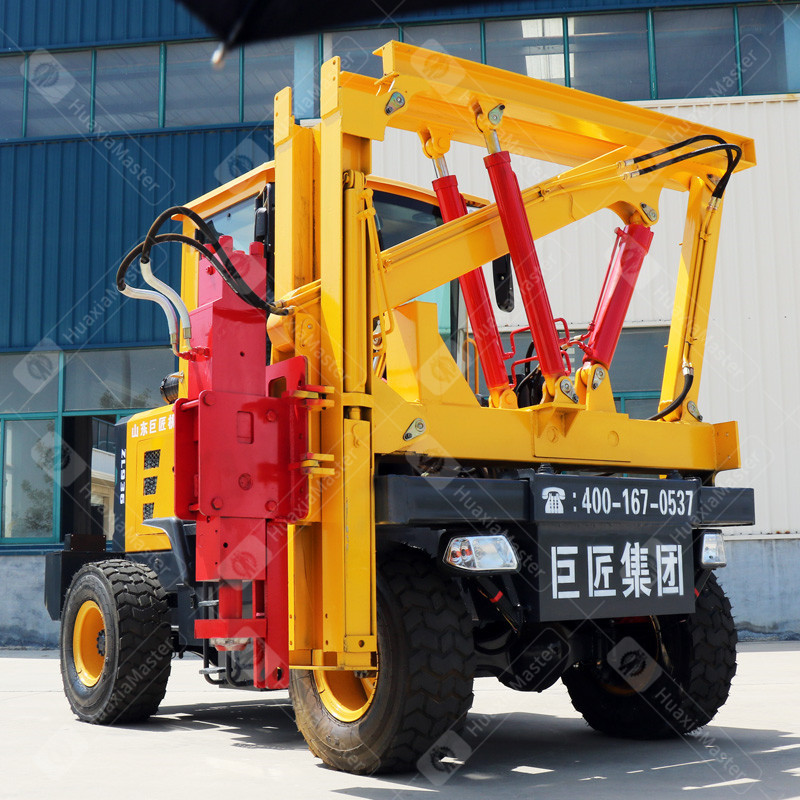

DZC-Ⅰ series loading type guardrail pile driving and pulling machine

DZC-Ⅰ series loading type guardrail pile driving and pulling machine

没有此类产品
Product description

 一Brief introduction of DZC-Ⅰloading type guardrail pile driving and pulling machine

DZC-I series loading type guardrail pile driving and pulling machine is a truck-mounted pile driving equipment developed by Shandong Master Machinery Group several years ago according to the road piling market demand. It integrates pile driving, pile pulling and other functions in one. It is widely used in pile driving operations such as wood piles, metal piles and other piles on pure soil pavements such as highways, national roads, provincial roads and county roads.

二、Features of DZC-Ⅰloading type guardrail pile driving machine

(1) Adopt mature technology loader as the chassis, with fast transition and stable performance.

(2)The electrical, hydraulic, operating and monitoring instruments of the whole machine are concentrated in the cab, which is convenient to operate.

(3) The gantry of the pile driver can be tilted forward, backward, left or right to easily realize the vertical pile driving requirements on sloped ground.

(4)Equipped with leg oil cylinder, accurate piling can be achieved without displacement.

(5)Set the pulling function in one, the hydraulic hammer can be inserted into the new pile or the old one, which is convenient and efficient.

三、Parameters of dzc - Ⅰ loading guardrail pile driver

No.

Items

Units

Parameter

1

Loader model



ZL-936

2

Engine type



4102

3

Rated power

kw

73kw

4

Brake system



Double-drum air brake

5

Hammer Model



260

6

Pipe pile specification



110, 140 round pile and 130 square pile

7

Machine weight

kg

4300

8

Transport dimension

mm

L4200*W2500*H2700
