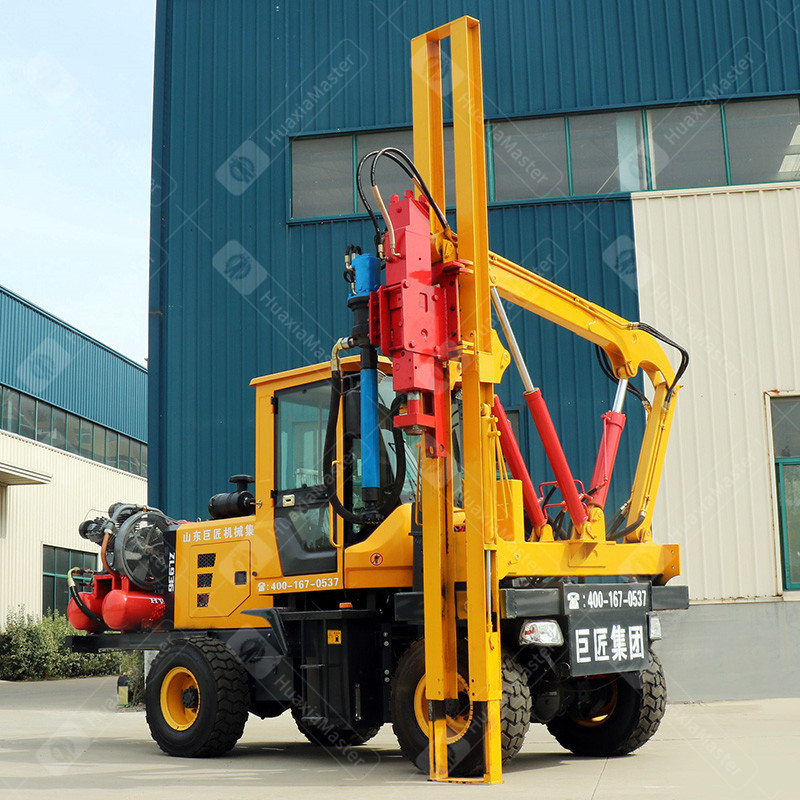

DZC-Ⅱ series loading type guardrail pile driving and pulling machine
DZC-Ⅱ series loading type guardrail pile driving and pulling machine
1.Brief Introduction of DZC-Ⅱ Type Loading Guardrail Pulling Drill Pile Driver
DZC-Ⅱ model guardrail pile driver machine is a truck-mounted piling equipment developed by Shandong Master Machinery Group to continue to meet the needs of piling in complex strata. It combines piling, pulling, drilling and other functions into one. It has been widely used in pile-type piling construction operations of complex strata such as highways, provincial roads, county-level roads and mountain roads, especially wood piles and metal piles in high-hardness strata.
2.Features of DZC-Ⅱloading type guardrail pile driving machine
(1)Adopt mature technology loader as the chassis, with fast transition and stable performance.
(2)The electrical, hydraulic, operating and monitoring instruments of the whole machine are concentrated in the cab, which is convenient to operate.
(3)The gantry of the pile driver can be tilted forward, backward, left or right to easily realize the vertical pile driving requirements on sloped ground.
(4)Equipped with outrigger oil cylinder, it can realize accurate pile driving without displacement.
(5)The air compressor is processed on the pile driver without the need to drag the air compressor, saving time and labor.
(6)Equipped with impactor, drill pipe and impact drill to drill high hardness formations such as rock and concrete.
(7)The piling hammer head and drilling machine adopt a folding design to save transportation space.
3.Technical parameters of DZC-Ⅱloading type guardrail pile driving machine
No |
Items |
Units |
Parameters |
---|---|---|---|
1 |
Loader model |
|
ZL-936 |
2 |
Engine Model |
|
4102 |
3 |
braking systems |
|
Double drum air brake |
4 |
Hammer Model |
|
260 |
5 |
air compressor |
kg/m³ |
3.5/7 |
Hp |
30 |
||
6 |
Drill pipe |
mm |
1500 |
7 |
Impactor model |
|
110 |
8 |
Drill bit |
mm |
120-180 |
9 |
Machine weight |
kg |
4200/4800 |
10 |
Dimensions |
mm |
L4200*W2500*H2700 |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
