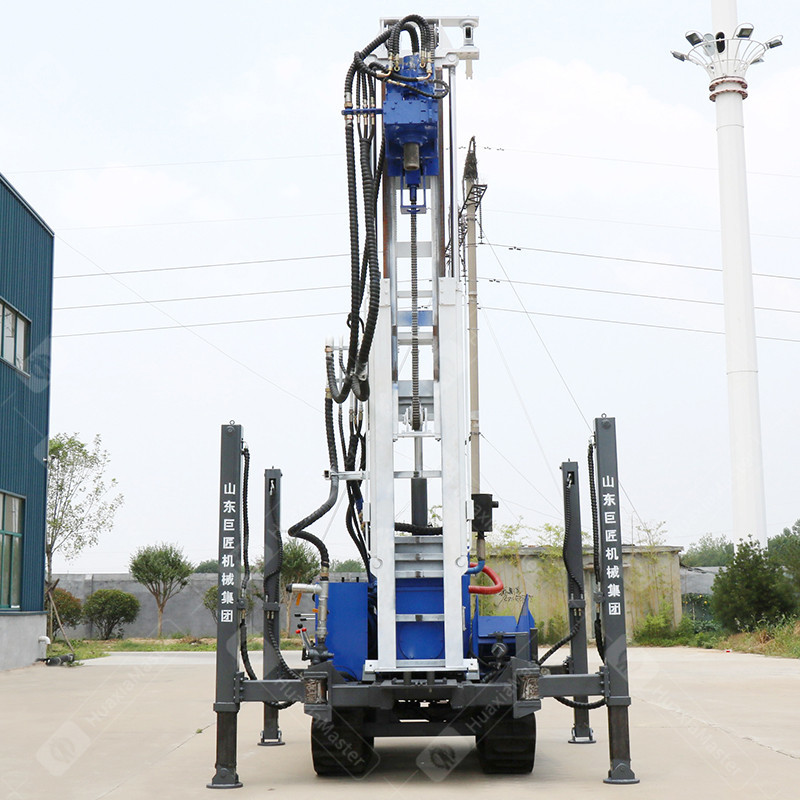

HBZ-1 crawler type environmental protection drilling rig

HBZ-1 crawler type environmental protection drilling rig

没有此类产品
Product description

一、Brief introduction of HBZ-1 crawler type environmental protection drilling rig

HBZ-1 crawler-type environmental protection drilling rig is an environmental protection sampling rig designed and developed by Shandong Jujiang Machinery Group according to the requirements of industrial site pollution survey and ecological environmental protection geological work sampling process. The drilling rig can not only use spiral drilling for environmentally friendly well construction, but also can use hydraulic direct push for double-tube sampling. In the double-tube sampling process, it can effectively avoid secondary pollution, no pollution and little disturbance to the sampling soil, and it is a high-efficiency and high-quality sampling equipment.

二、Features of HBZ-1 crawler type environmental protection drilling rig

1. Equipped with rotary and impact integrated dual power head, which can be used for spiral drilling and well construction and hydraulic impact direct push sampling.

2. Equipped with high-power diesel engine with strong power, which can effectively guarantee the work needs.

3. It is equipped with rubber steel track, which is easy to move, improves work efficiency, and does not hurt the road surface when walking on urban roads.

4. Equipped with hydraulic high outriggers, used for leveling of drilling rig to ensure the stability of the fuselage.

5. The operating handle is concentrated, the layout is reasonable, safe and feasible.

三、Technical parameters of HBZ-1 series crawler environmental protection drilling rigs

No.

project

unit

Parameter value

1

monitor rate

kW

58

2

Core depth

m

30

3

Drilling method

/

Hydraulic direct push / screw well construction

4

Walking speed

km/h

2.5

5

Climbing ability

°

25MAX

6

One step

mm

3000

7

Dimensions

mm

L3800*W1700*H2750
