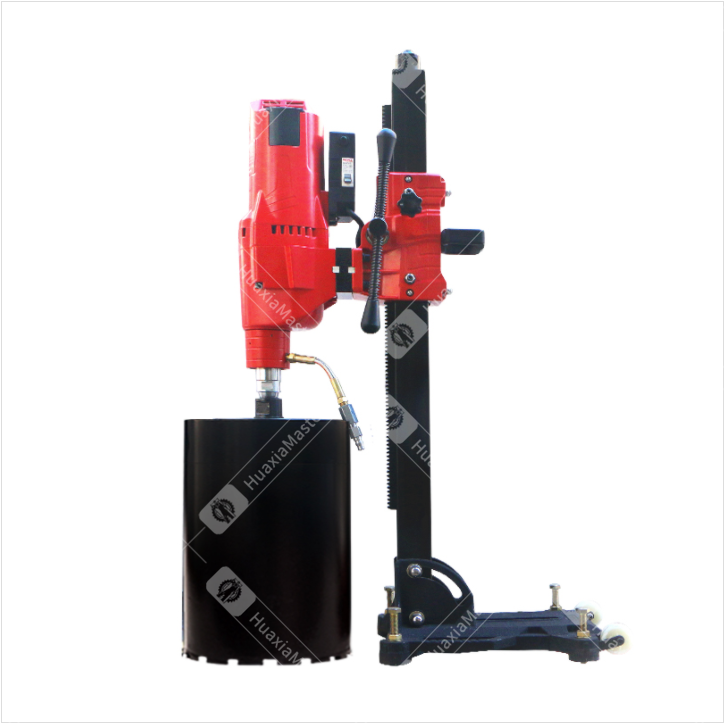

HZD series diamond drilling machine

HZD series diamond drilling machine

没有此类产品
Product description

1.Introduction of HZD series diamond drilling machine

Diamond drilling machine (also known as reinforced concrete drilling machine) is a new type of tool that can drill holes in reinforced concrete, masonry, rock, ceramics and refractory materials. It has dust-free operation, high efficiency, smooth hole walls, and size Precise characteristics. It is suitable for equipment installation, water and electricity, gas installation, civil engineering quality inspection, airport runway, highway, railway, railway bridge and tunnel construction, quality inspection, and installation fields.

The company’s diamond drilling machine uses built-in and externally adjustable friction clutches; electronic soft-start, over-current protection and other protective devices, which are flexible in movement, economical and durable, safe and reliable.

2.Parameters of HZD series diamond drilling machine

Product model

Drilling range
(mm)

Rated voltage (V)

Rated frequency (HZ)

Input power (W)

Idle speed
(r/min)

HZD-135

15~135

110/220/240

50~60

1500

980/0~980

HZD-165

15~165

110/220/240

50~60

3200

800/0~800

HZD-185

15~185

110/220/240

50~60

3380

750/0~750

HZD-205

15~205

110/220/240

50~60

3650

700/0~700

HZD-235

15~235

110/220/240

50~60

3880

600/0~600

HZD-255

15~255

110/220/240

50~60

3950

580/0~580

HZD-305

15~305

110/220/240

50~60

4350

760/380~760/0~760

HZD-355

15~355

110/220/240

50~60

4680

600/300~600/0~600

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
