YPJ series static explosion hydraulic splitting machine

YPJ series static explosion hydraulic splitting machine

没有此类产品
Product description

1.Brief introduction of YPJ series static explosion hydraulic splitting machine

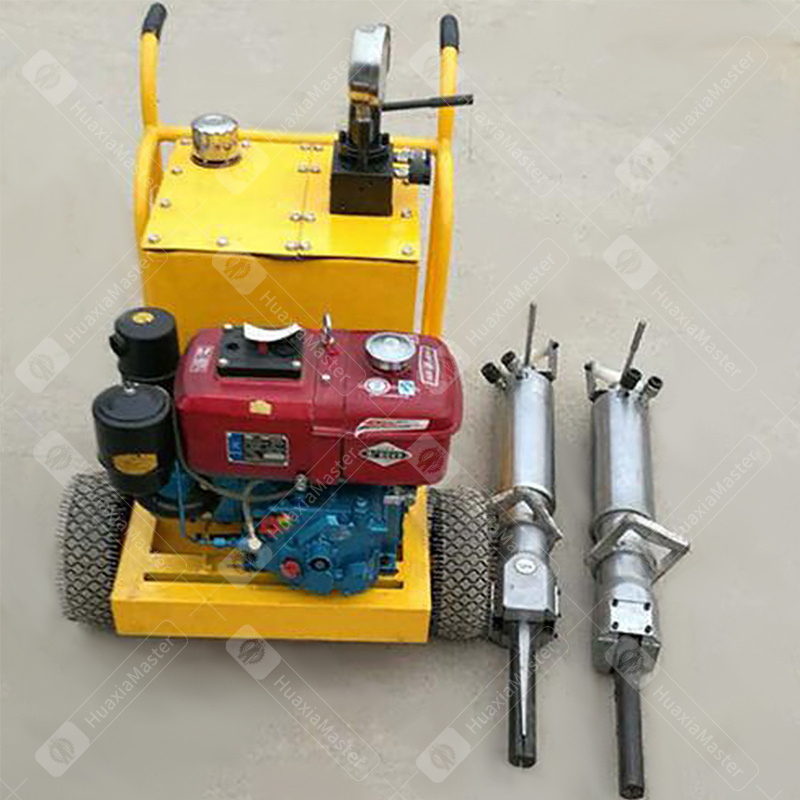

Hydraulic splitting machine, also known as hydraulic splitting gun, rock splitting machine, mountain cutter, hydraulic splitter, etc., is a static explosion hydraulic splitting equipment produced by Shandong Master Machinery Group. The static explosion hydraulic splitting machine consists of a hydraulic pump station, a splitter, a high-pressure tubing and a splitting gun. According to the different power of hydraulic pump station, it can be divided into hydraulic splitting machine for electric motor station and hydraulic splitting machine for diesel station. The hydraulic splitting machine is designed using the principle of wedge. The hydraulic pump station outputs ultra-high pressure hydraulic oil. The middle wedge in the wedge group is driven forward by driving the oil cylinder, the reverse wedges are propped up to both sides, so as to quickly split the rock and separate the hard ore from the mountain. The equipment has been widely used in open-pit quarrying, roadway excavation, concrete demolition, and demolition operations in narrow sites and other fields.

2.Features of YPJ series static explosion hydraulic splitting machine

(1)Compared with the traditional operation method, the hydraulic splitting gun has the characteristics of safety and environmental protection, silent and dust-free, simple structure, convenient operation, strong controllability, high efficiency and low cost.

(2)Adopt modular design, easy to assemble and disassemble.

(3)Small size, light weight, easy to carry, and can be dismantled in a narrow place.

(4)The hydraulic pump station is easy to start, flexible in operation, strong in power and reliable in performance.

(5)The hydraulic splitting gun is made of high-quality steel, the wedge is wear-resistant and impact-resistant, and is durable.

(6)The hydraulic tubing is resistant to high pressure, has good toughness and is not easy to burst.

3.Parameters of YPJ series static explosion hydraulic splitting machine

Model

YPJ-250

YPJ-350

YPJ-450

Spearhead length(mm)

250

350

450

Required aperture (mm)

42

46

50

Required hole depth (mm)

500

600

700

Effective splitting force (T)

600

1000

1000

Split gun weight (kg)

29

30

31

Equipped with pump station pressure (Mpa)

63

63

63

Motor station

Power (kw)

4

4

4

Diesel station

Horsepower (hp)

8

8

8

Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.
