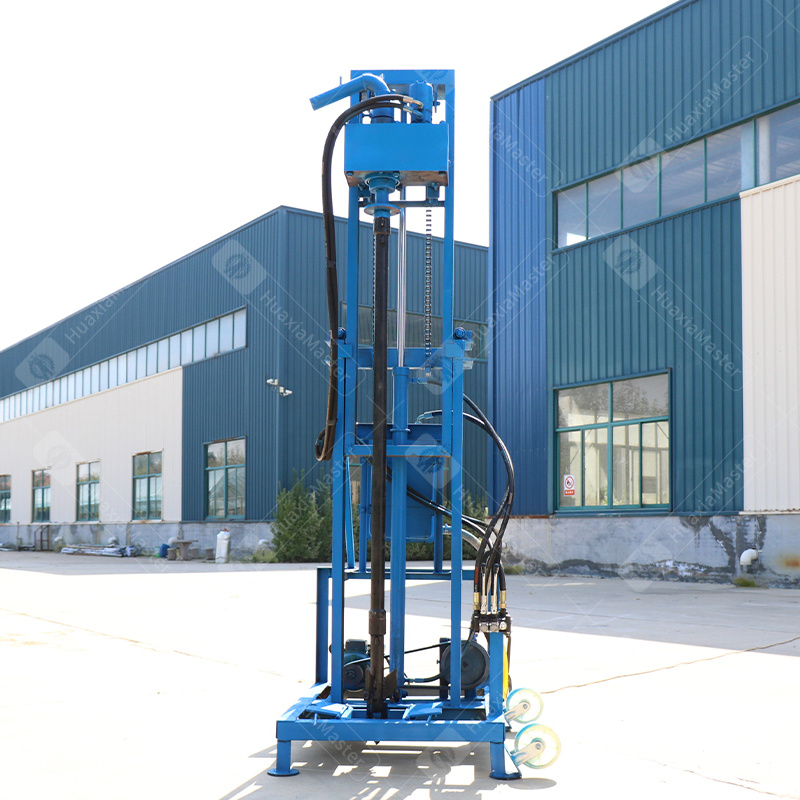

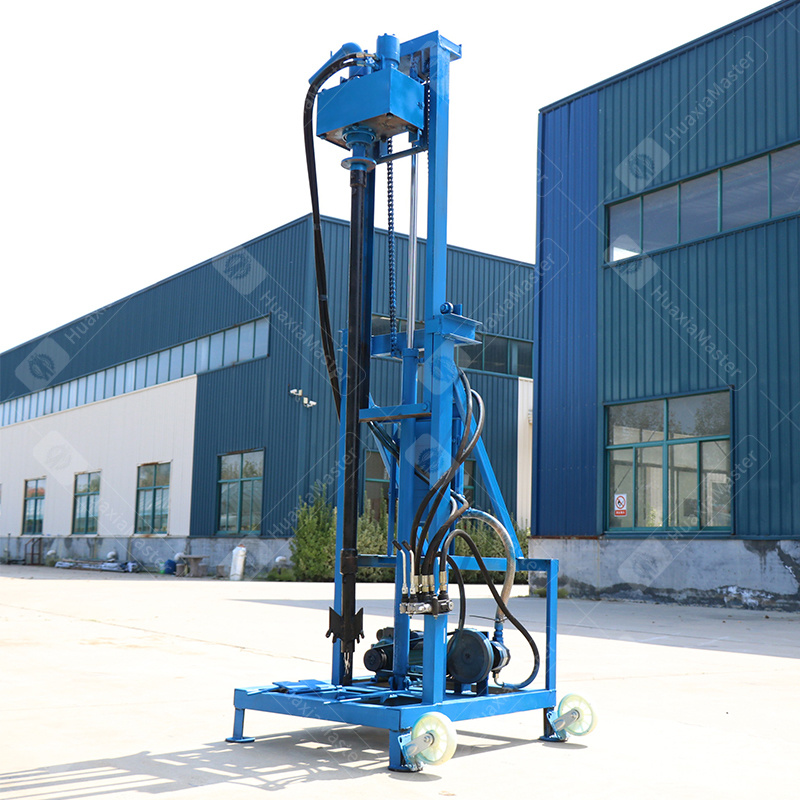

SJDY-2 two-phase electric hydraulic water well drilling rig
SJDY-2 two-phase electric hydraulic water well drilling rig
1.Brief introduction of SJDY-2 two-phase electric hydraulic water well drilling rig
SJDY-2 two-phase electric hydraulic water well drilling rig is a hydraulic water well drilling rig developed and successfully widely promoted by Shandong Master Machinery Group. The drilling rig is suitable for drilling mud, quicksand and a small amount of rock and soil. It is mainly used for drilling civil draft wells, ground source heat pump air conditioning wells, engineering dewatering wells, drought-resistant water wells, industrial water wells, etc.
2.Features of SJDY-2 two-phase electric hydraulic water well drilling rig
(1)The rated voltage of two-phase electricity is 220V, which makes it more convenient to use electricity.
(2)The drilling rig adopts hydraulic working principle to improve drilling efficiency.
(3)Equipped with high-power hydraulic motor, the power head can be forward and reverse.
(4)The drill frame is equipped with a hydraulic cylinder, and the hydraulic pressure can be raised and lowered by operating the handle.
(5)Equipped with wheel walking mechanism, it is convenient to move the drilling rig in a short distance.
3.Parameters of SJDY-2 two-phase electric hydraulic water well drilling rig
Drilling depth |
m |
50~100 |
Hole diameter |
mm |
200 |
Final hole diameter |
mm |
100-200 |
Drill pipe specifications |
mm |
Φ50*1500 |
Rated voltage |
V |
220 |
Rated power |
KW |
4 |
Transport size |
mm |
L1050*W1030*H1700 |
Construction size |
mm |
L1050*W1030*H2720 |
Total Weight |
kg |
250 |
Number of operators |
people |
1 |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
