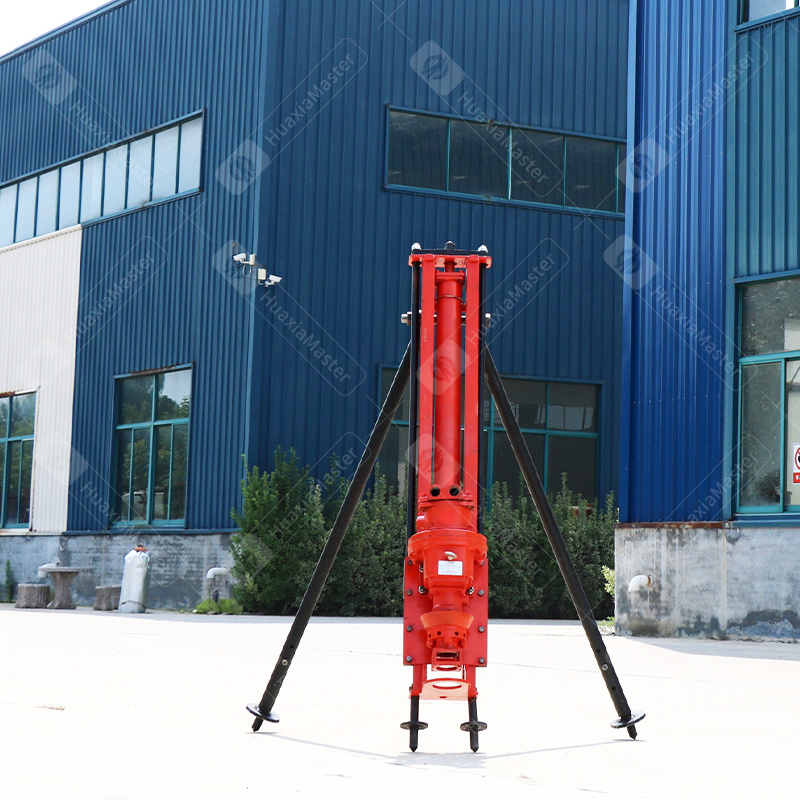

KQZ-70 fully pneumatic DTH drilling rig
KQZ-70 fully pneumatic DTH drilling rig
1. Brief introduction of KQZ-70 fully pneumatic DTH drilling rig
KQZ-70 fully pneumatic DTH drilling rig is a new type of rock drilling equipment designed for water conservancy projects and building materials construction sites. It is suitable for drilling various rock formations in open-pit mines, water conservancy, building slope treatment and other projects.
KQZ-70 fully pneumatic DTH drilling rig is a percussive rotary drilling rig. Its internal structure is different from that of a general jack drill. Its valve train and reciprocating piston mechanism are independent, that is impactor. The front end is directly connected to the drill bit, and the rear end is connected to the drill rod. When rock drilling, the impactor dives into the hole, through the gas distribution device (valve), the piston (hammer) in the impactor reciprocates to hit the shank tail, so that the drill bit generates a whirling force on the rock at the bottom of the hole.
2. Features of KQZ-70 fully pneumatic DTH drilling rig
Small in size and light in weight, it is suitable for places where large and medium-sized drilling rigs cannot be operated, and is convenient and flexible.
3. Specifications of KQZ-70 fully pneumatic DTH drilling rig
Performance parameter |
Unit |
|
Drilling diameter |
mm |
50~80 |
Drilling depth |
M |
10~15 |
Rotating speed of drilling tool |
r/min |
90~110 |
Air consumption |
m³/min |
3.5~6 |
Propelling cylinder diameter |
mm |
90 |
Drill pipe |
mm |
Ø 42 |
Motor power |
KW |
3 |
Host length |
mm |
1524 |
Host weight |
KG |
110 |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
