HZ-80Y hydraulic core drilling rig

Keywords:

产品描述

  • 产品描述
    • Commodity name: HZ-80Y hydraulic core drilling rig

    1. Brief introduction of HZ-80Y hydraulic core drilling rig

    (1)It is used for general survey exploration, geophysical exploration, road and construction exploration, blast hole drilling, civil water wells and other drilling projects;

    (2)Drill bits such as alloy, steel grit and steel particles can be selected for drilling according to the different formations;

    (3)It can drill sandy clay and bedrock layers of grade 2-9.

    2. Main features of HZ-80Y hydraulic core drilling rig

    (1)With hydraulic automatic feeding mechanism, high drilling efficiency.

    (2)Centralized handle, convenient operation, safe and feasible.

    (3)The structure is compact, the drilling rig, water pump and diesel engine are all installed on the same chassis, occupying a small area.

    (4)Light weight, strong decomposition ability, easy to relocate, suitable for working in plains and mountainous areas.

    3. Parameters of HZ-80Y hydraulic core drilling rig

    Machine parameters

    Drilling diameter

    75-110mm

    Drilling depth

    80m

    Drill rod

    42mm

    Main engine power

    12HP

    Rig weight

    400KG

    Vertical shaft speed

    156/312/625rpm

    Vertical axis stroke

    400mm

    Vertical shaft lifting capacity

    10KN

    Displacement

    95L/min

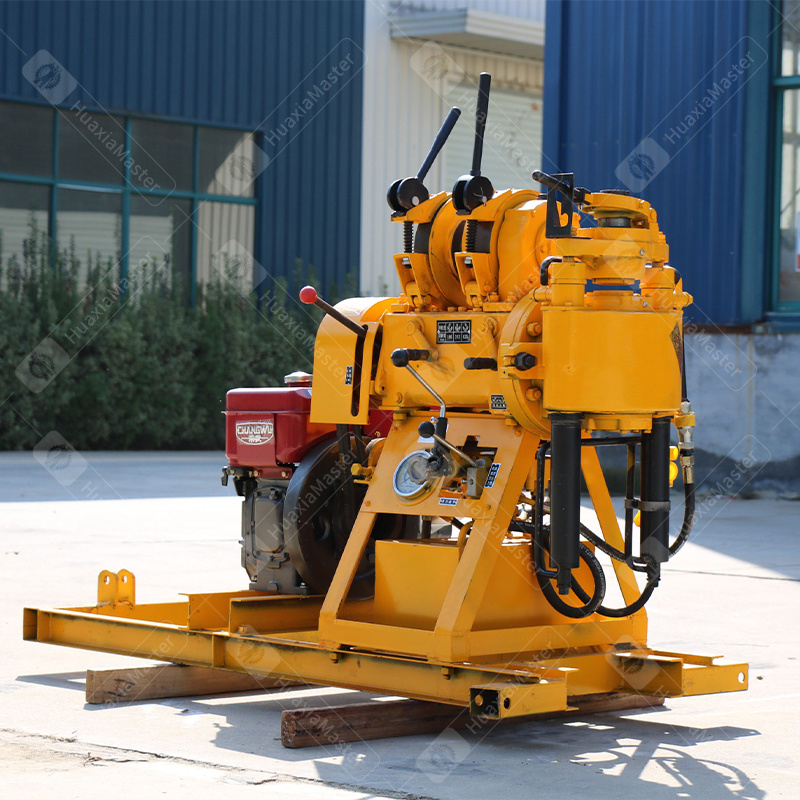

    Working status

    1750*820*1000mm

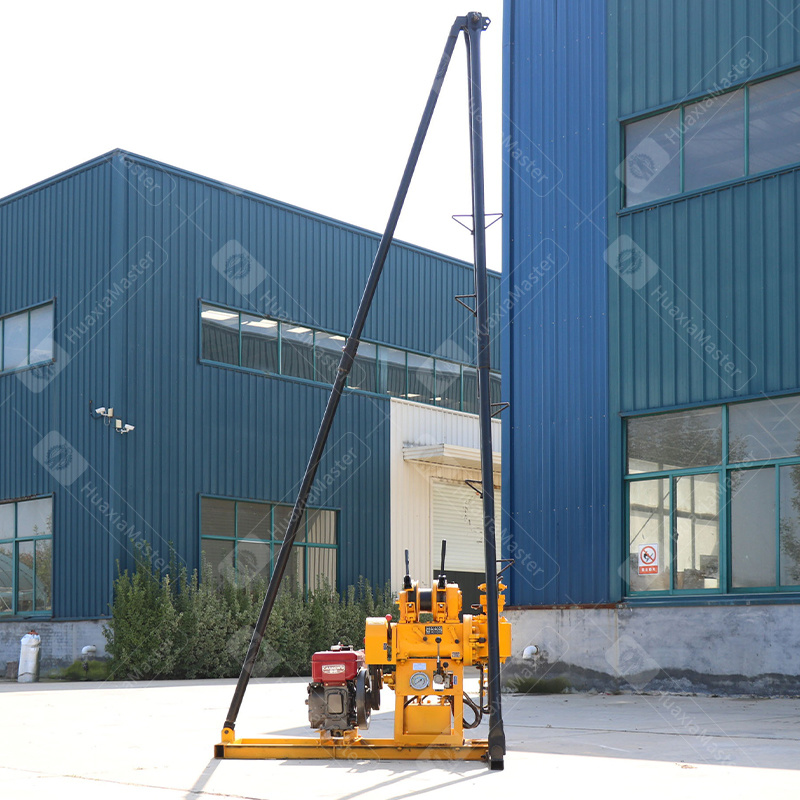

    Construction status

    1800*1760*4400mm

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
