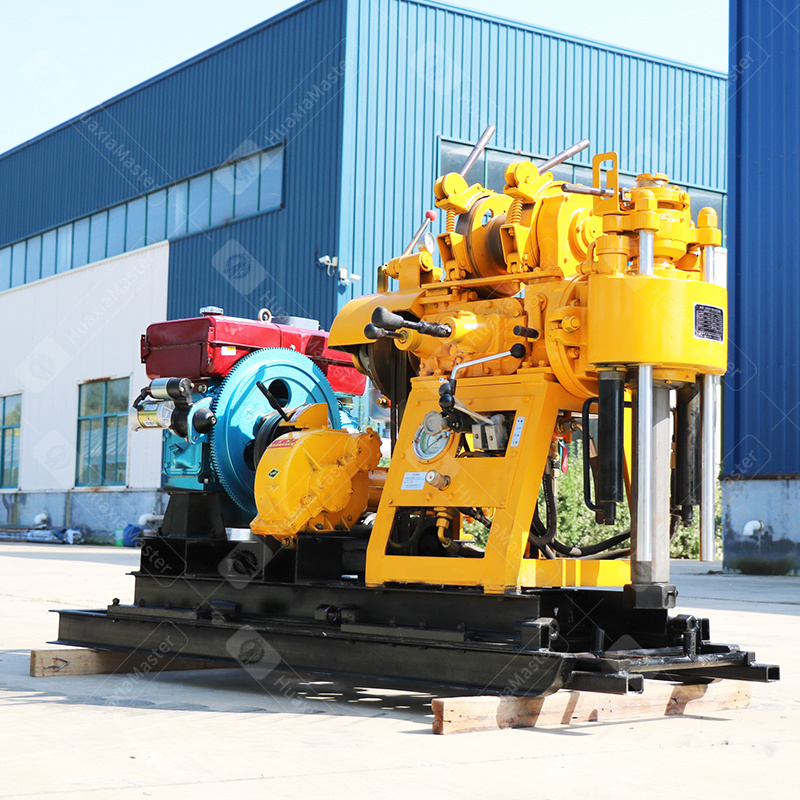

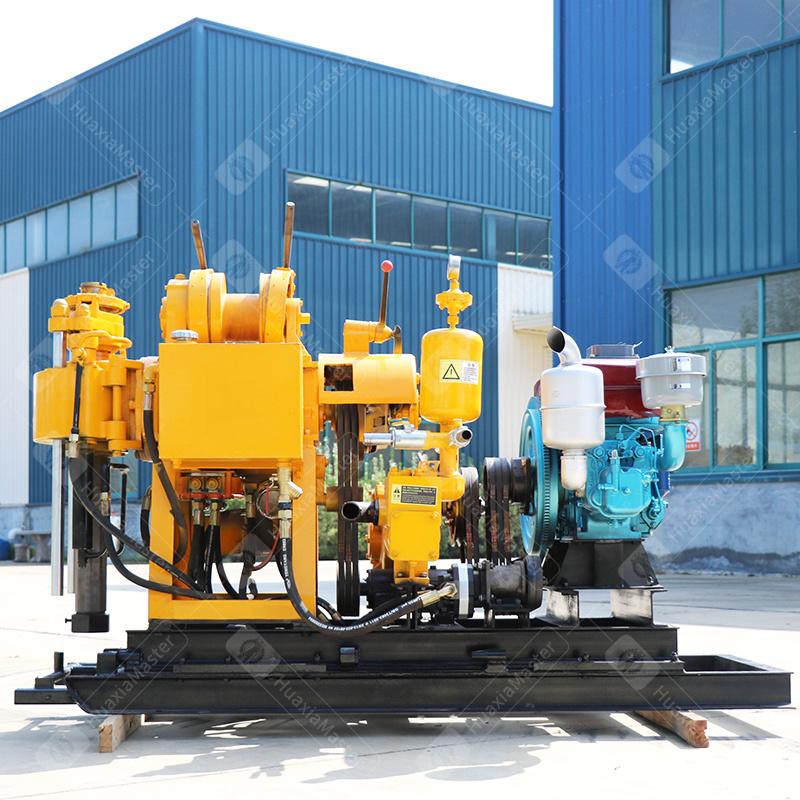

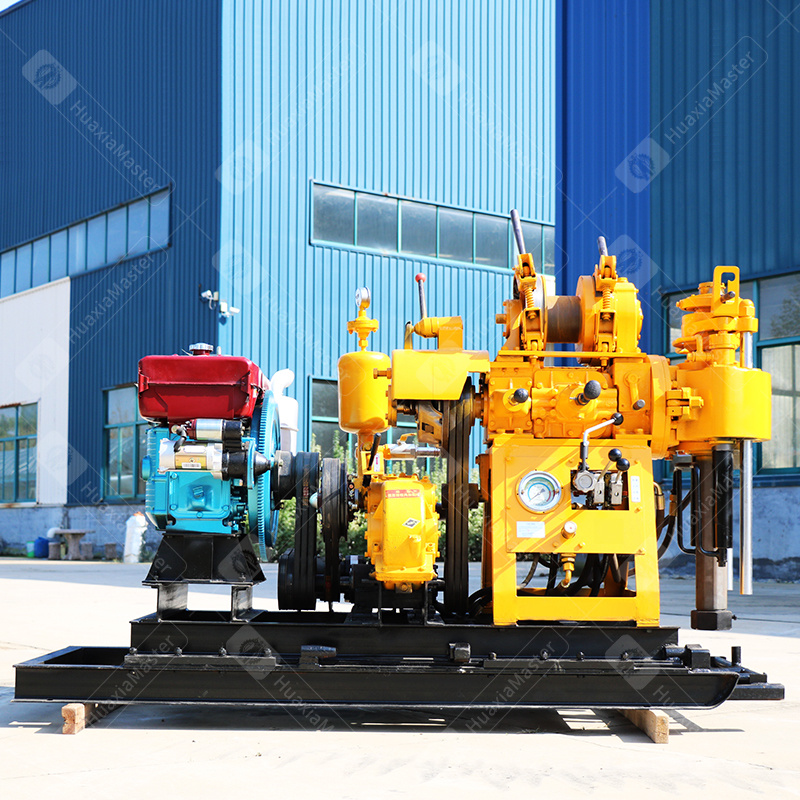

HZ-200YS hydraulic core drilling rig

HZ-200YS hydraulic core drilling rig

没有此类产品
Product description

1. Application scope of HZ-200YS hydraulic core drilling rig

General geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.

2. Features of HZ-200YS hydraulic core drilling rig

(1) This machine adopts taper clutch, which has large transmission torque and convenient operation;

(2)The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;

(3)The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;

(4)The planetary gear of the hoist is increased in modulus and a support frame is installed, which greatly improves the lifting and braking capabilities of the hoist.

(5)The drilling rig is equipped with a mobile device, which can realize the front and back movement of the drilling rig itself, which is convenient for wellhead operation.

(6)Equipped with BW-160 mud pump, which has high pressure and large flow rate, ensuring the drilling depth and diameter.

3. Technical parameters of HZ-200YS hydraulic core drilling rig

Machine parameters

Drilling depth

200m

Hole diameter

0-300mm

Final hole diameter

75mm

Drill rod diameter

50mm

Drilling angle

90°~75°

Rig weight

976kg

V-belt

B950*4 B1700*3

Active movement distance

350mm

Power

Diesel engine/motor 22HP/16.2KW

Vertical axis

Vertical shaft forward speed

(low speed)

76 164 327 489 r/min

Vertical shaft forward speed

(high speed)

176 378 753 1125 r/min

Vertical shaft reverse speed

61 142 r/min

Vertical shaft stroke

450mm

Hoist

Single rope lifting capacity

15KN

Single rope lifting speed

0.166 0.311 0.733 1.465 m/s

Wire rope diameter

9.3mm

Wire rope capacity

35m

Mud pump

Model

BW160

Flow

160L/min

Pressure

0-1.3Mpa

Hydraulic pump

Specification

FC-25 Right SD

Dimensions

Length*width*height

2100mm*1100mm*1450mm

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
