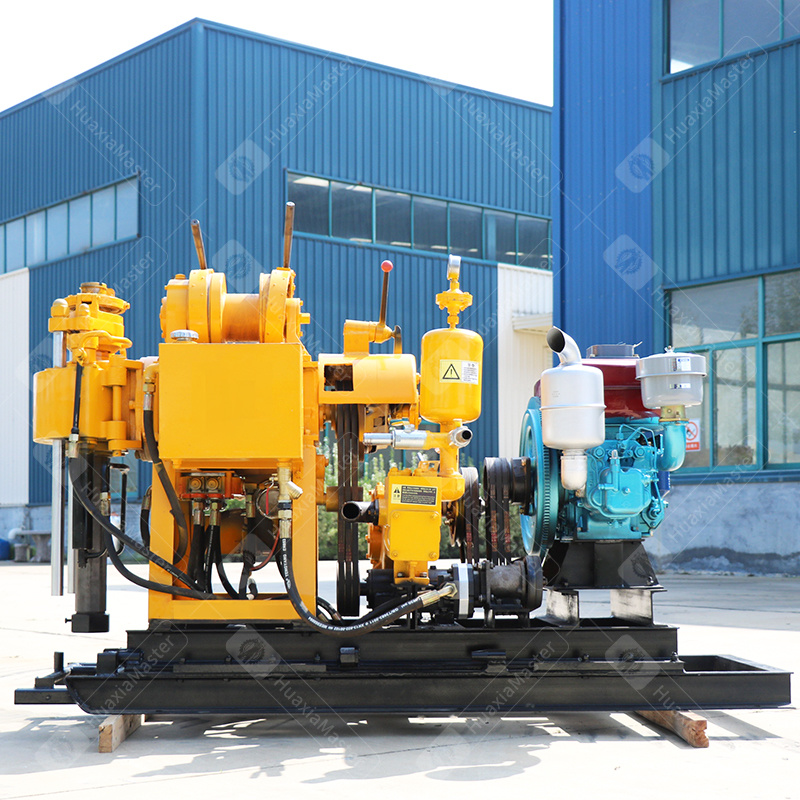

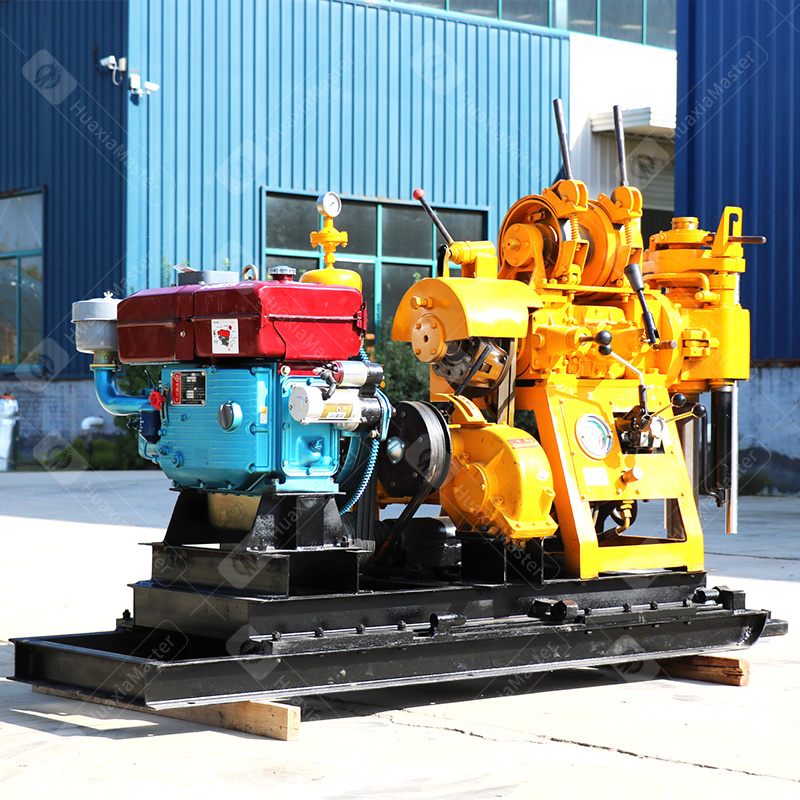

HZ-200YS hydraulic water well drilling rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: HZ-200YS hydraulic water well drilling rig
1. Application scope of HZ-200YS hydraulic water well drilling rig
General geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.
2. Features of HZ-200YS hydraulic water well drilling rig
(1) This machine adopts taper clutch, which has large transmission torque and convenient operation;
(2) The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;
(3) The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;
(4) The planetary gear of the hoist is increased in modulus and a support frame is installed, which greatly improves the lifting and braking capabilities of the hoist.
(5) The drilling rig is equipped with a mobile device, which can realize the front and back movement of the drilling rig itself, which is convenient for wellhead operation.
(6) Equipped with BW-160 mud pump, which has high pressure and large flow rate, ensuring the drilling depth and diameter.
3. Technical parameters of HZ-200YS hydraulic water well drilling rig
Machine parameters
Drilling depth
200m
Hole diameter
0-300mm
Final hole diameter
75mm
Drill rod diameter
50mm
Drilling angle
90°～75°
Rig weight
976kg
V-belt
B950*4 B1700*3
Active movement distance
350mm
Power
Diesel engine/motor 22HP/16.2KW
Vertical axis
Vertical shaft forward speed
(low speed)
76 164 327 489 r/min
Vertical shaft forward speed
(high speed)
176 378 753 1125 r/min
Vertical shaft reverse speed
61 142 r/min
Vertical shaft stroke
450mm
Hoist
Single rope lifting capacity
15KN
Single rope lifting speed
0.166 0.311 0.733 1.465 m/s
Wire rope diameter
9.3mm
Wire rope capacity
35m
Mud pump
Model
BW160
Flow
160L/min
Pressure
0-1.3Mpa
Hydraulic pump
Specification
FC-25 Right SD
Dimensions
Length*width*height
2100mm*1100mm*1450mm
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
