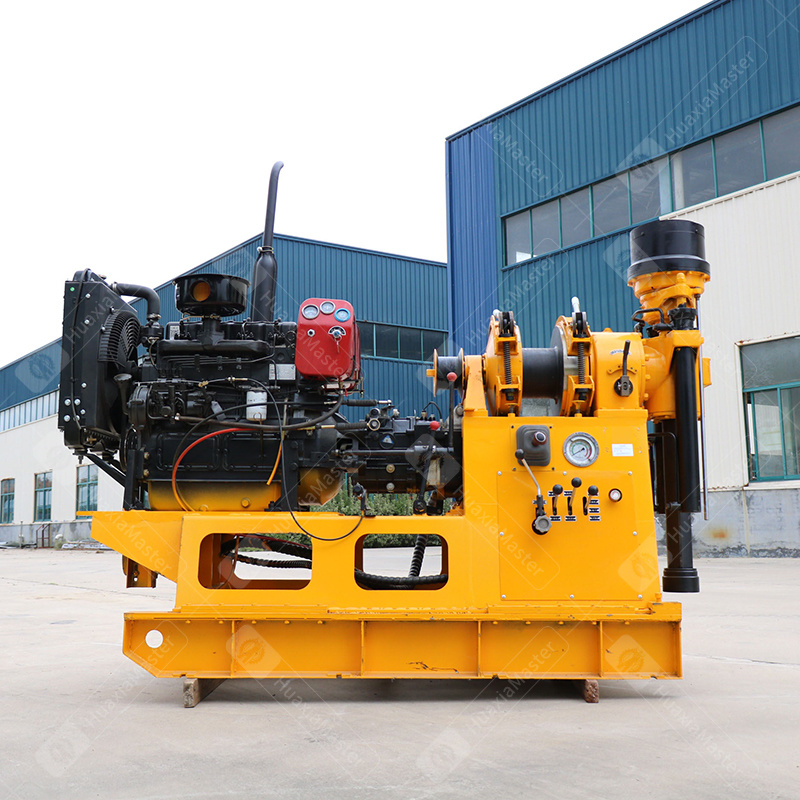

XY-2 hydraulic core drilling rig

XY-2 hydraulic core drilling rig

没有此类产品
Product description

1. Scope of application of XY-2 hydraulic core drilling rig

General geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.

2. Main features of XY-2 hydraulic core drilling rig

(1) The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;

(2) With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient;

(3) The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;

(4) With a normally closed hydraulic chuck, it is convenient and flexible to operate;

(5) The vertical shaft through hole has a large diameter, which can be replaced with a large hexagonal active drill rod;



3. Technical parameters of XY-2 hydraulic core drilling rig



Machine parameters

Drilling depth

300m

Drilling diameter

300-75mm

Hole diameter

300mm

Final hole diameter

75mm

Drill rod

Φ60

Drilling angle

90°--65°

Vertical axis

Vertical shaft forward speed

65-1172 r/min

Vertical shaft reverse speed

51-242 r/min

Vertical shaft reverse speed

560mm

Vertical shaft lifting capacity

6000kg

Main winch

Single rope lifting speed

0.5-1.9m/s

Wire rope diameter

12.5mm

Single rope lifting capacity

3000kg

Roll diameter

300mm

Roll capacity

50m

Gear pump

Gear oil pump

CBF-F63/25

Front flow pressure

63L/min 20Mpa

After flow pressure

25L/min 20Mpa

Rig power

Diesel engine

33KW

Motor

22KW

Weight&Size

Rig weight

1480KG

Dimensions

2500*900*1800mm

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
