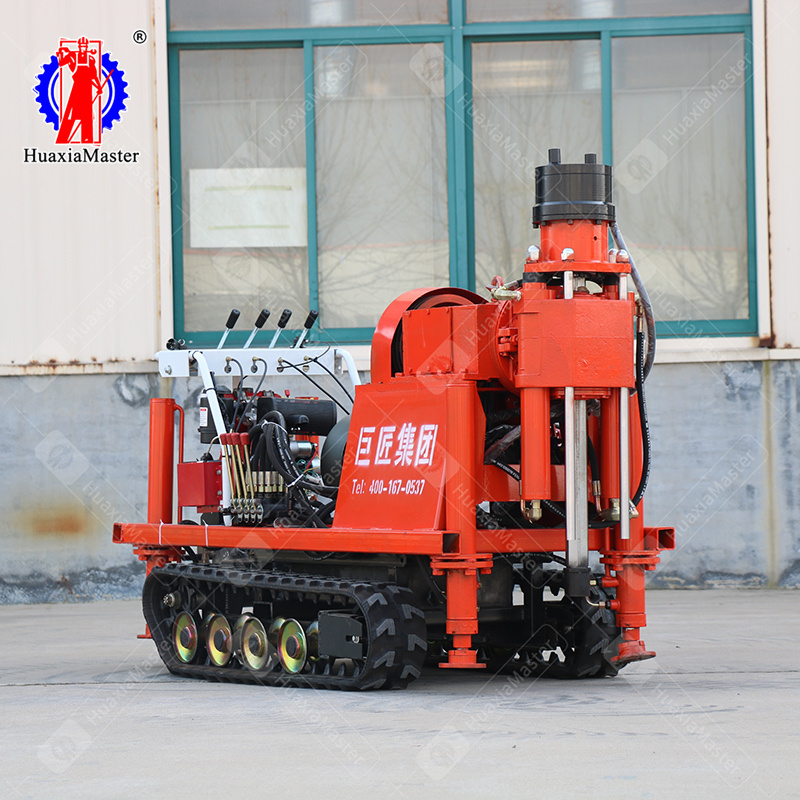

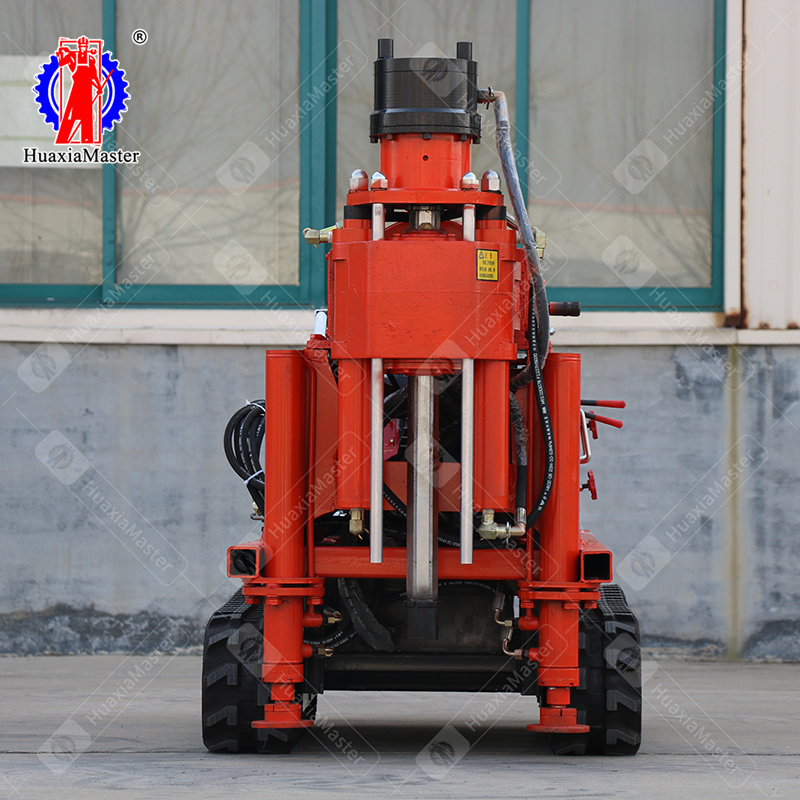

ZLJ-1200D crawler hydraulic grouting reinforcement drilling rig
ZLJ-1200D crawler hydraulic grouting reinforcement drilling rig
1. Application of ZLJ-1200D crawler hydraulic grouting reinforcement drilling rig
ZLJ-1200D crawler grouting reinforcement drilling rig is mainly used for grouting reinforcement drilling at different angles in underground mines, tunnels, subways, and slope supports. The drilling rig adopts mechanical transmission, hydraulic feed, and has the characteristics of small size, light weight, convenient operation and maintenance, etc.
2. Features of ZLJ-1200D crawler hydraulic grouting reinforcement drilling rig
(1) Using mechanical transmission and hydraulic feed, the drilling efficiency is high.
(2) Equipped with a rubber steel wire crawler chassis, it is compact and flexible, and can be constructed in a narrow space, with light weight, and can walk on urban roads without hurting the road surface.
(3) The angle can be adjusted to meet the needs of multi-angle grouting.
3. Parameters of ZLJ-1200D crawler hydraulic grouting reinforcement drilling rig
Basic parameter name |
ZLJ-1200 |
Rated output torque of vertical shaft (N.M) |
1200 |
Drill rod (mm) |
42 |
Drilling depth (m) |
250/200 |
Drilling diameter opening (mm) |
108 |
Final hole (mm) |
≥76 |
Vertical shaft diameter (mm) |
54 |
Vertical shaft speed (r/min) |
123/219/385 |
Vertical axis stroke (mm) |
400 |
Rated pulling force (kN) |
50(When 10mpa) |
Rated driving force (kN) |
30(When 10mpa) |
Drilling angle range (°) |
0-360 |
Working pressure of spring chuck (Mpa) |
8 |
Spring chuck clamping force (kN) |
≤50 |
Oil pump model |
YBC-20/80 |
Rated pressure of oil pump (Mpa) |
20 |
Rated flow of oil pump (Mpa) |
20 |
motor model |
YBK2-160M-4 |
Power (kW) |
|
Speed (r/min) |
1460 |
Rated voltage (V) |
380/660 |
Rated current (A) |
26.6/13.1 |
Overall weight (kg) |
980 |
Dimensions (mm) |
1480×680×1290 |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
