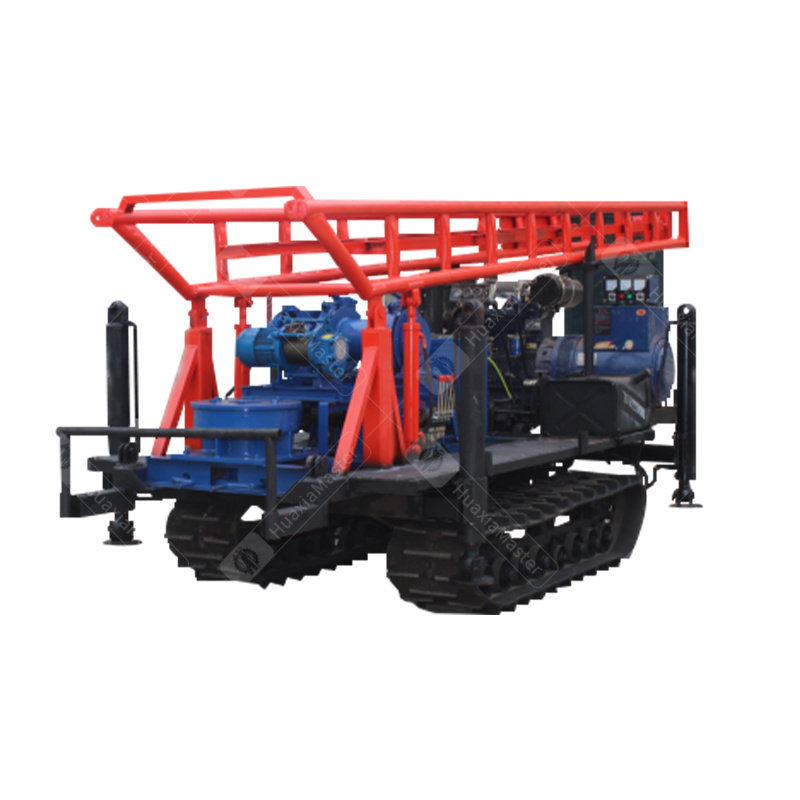

SPJD-260 Grinding Disc Drilling Rig

SPJD-260 Grinding Disc Drilling Rig

没有此类产品
Product description



1. Introduction of SPJD-260 crawler grinding disc drilling rig

SPJD-260 crawler grinding disc drilling rig is a multifunctional large-diameter water well drilling rig independently developed by our company. It adopts the latest hydraulic pressure and grinding disc, and is now widely used in dewatering wells, farmland irrigation wells and engineering pile holes and other projects.

2. Features of SPJD-260 crawler grinding disc drilling rig

(1)The drilling rig is composed of a chassis, a drilling frame, a hoist, and a grinding disc.

(2)The gearbox is a 6-speed gearbox, suitable for various terrains, with fast drilling speed and high efficiency.

(3)Equipped with rubber steel wire crawler, it is easy to move, improves work efficiency, and does not hurt the road when walking on urban roads.

(4)The crawler chassis is equipped with hydraulic outriggers, which are used to level the drilling rig and ensure the stability of the fuselage.

(5)The hoist and the grinding table use a power system, which operates smoothly, with abundant power and strong lifting ability.

3. Parameters of SPJD-260 crawler grinding disc drilling rig

SPJD-260 Grinding Disc Drilling Rig

Drilling depth

≤260m

Hole diameter

160-1800mm

Turntable speed

Forward19 35 61 117 143r/min

Reverse 17r/min

Lifting height

7.5m

Hoist lifting capacity

30kN

Derrick working height

4.6m

Supporting power

Motor

22m

Diesel

28kW

Drill pipe diameter

89/102hp

Drill pipe length

2.5m

Tower height

6m

Matching pump flow

180m³/h

Axial pressure

4.5N

Lifting force

12.5T

Swing torque

5500N.m

Weight

4000kg

Size

4200*1900*1900mm

Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.
